Individual hose record
73050200A083 Hose Repair Specifications
Excavator · Sunward · SWE155E · Solenoid Valve
Finished length1,570 mm
Locate this hose

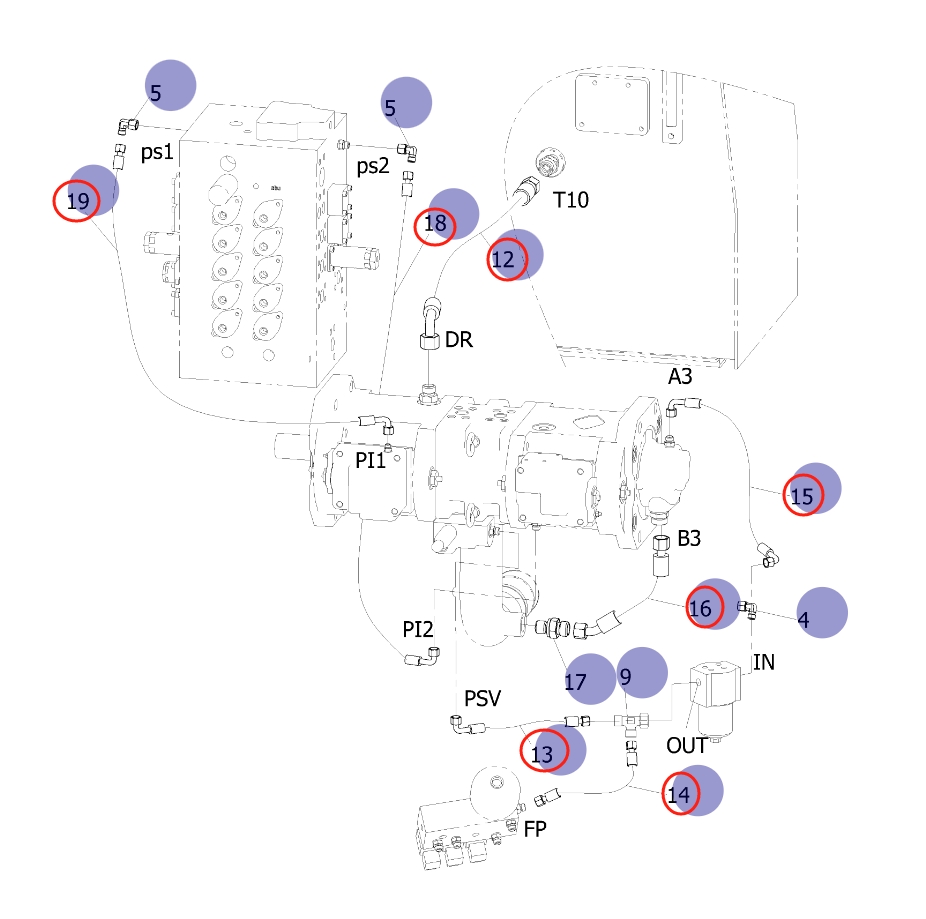

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 73050200A083 before removing the hose.
Repair specifications
- Part number
- 73050200A083
- Diagram pipe number
- 14
- Installation route
- 电磁阀(蓄能器)FP~液压油滤清器(OUT)
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 1,570 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
