Individual hose record

730501001453 Hose Repair Specifications

Excavator · Sunward · SWE210 · Control Valve

Finished length230 mm

Locate this hose

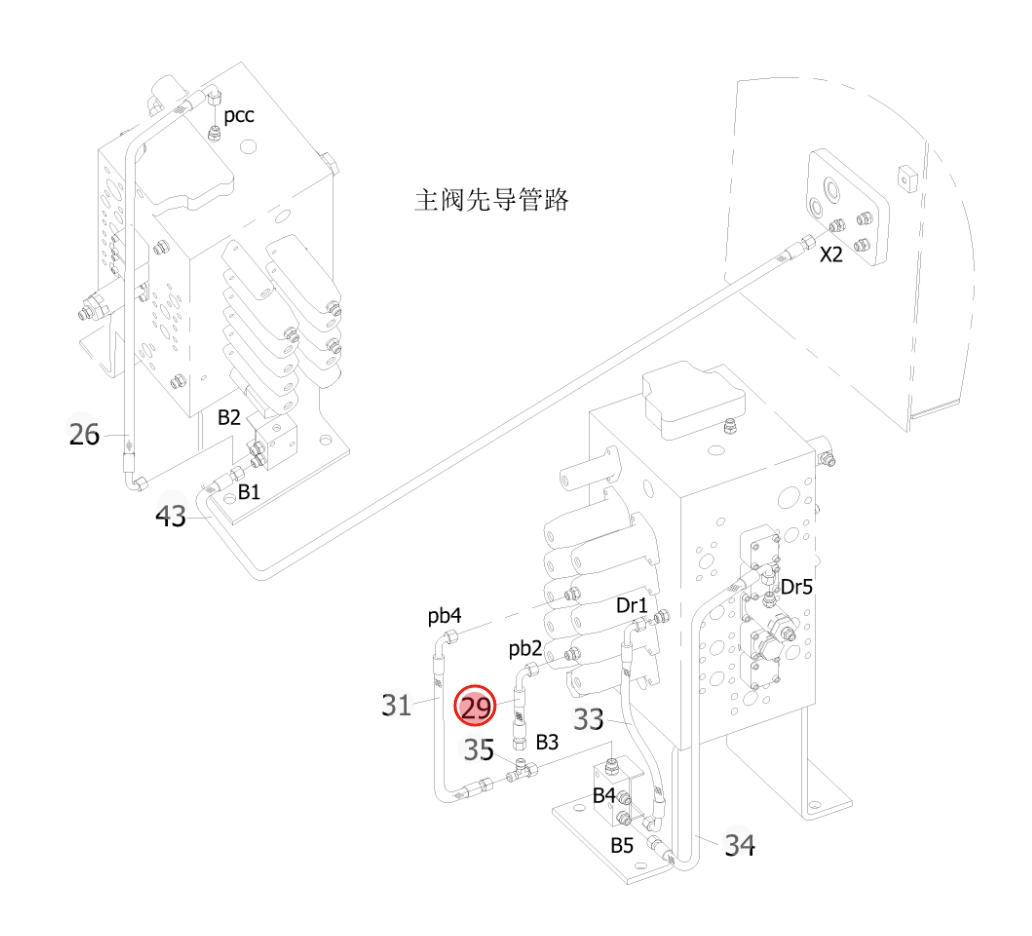

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 730501001453 before removing the hose.

Sunward SWE210 installation diagram showing hydraulic hose 730501001453 at Pipe No. 29 — Sunward SWE210Part 730501001453 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 730501001453
Diagram pipe number: 29
Installation route: 分配阀前PB2~过渡阀B3(分配阀下)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 230 mm
Working pressure: 22.5 MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

730501001078

Installation route: 分配阀前~液压油箱X4

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 7

730502000463

Installation route: 分配阀左DR5~过渡阀块B5(分配阀下)

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 13

730502000425

Installation route: 分配阀后DR3~液压油箱X3

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 10

730502001016

Installation route: 分配阀左PI1~分配阀后PA8

Length: 780 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
