Individual hose record

KRJ10710 Hose Repair Specifications

Excavator · Case · CX210D LC LR · Swivel Joint

Finished length780 mm

Locate this hose

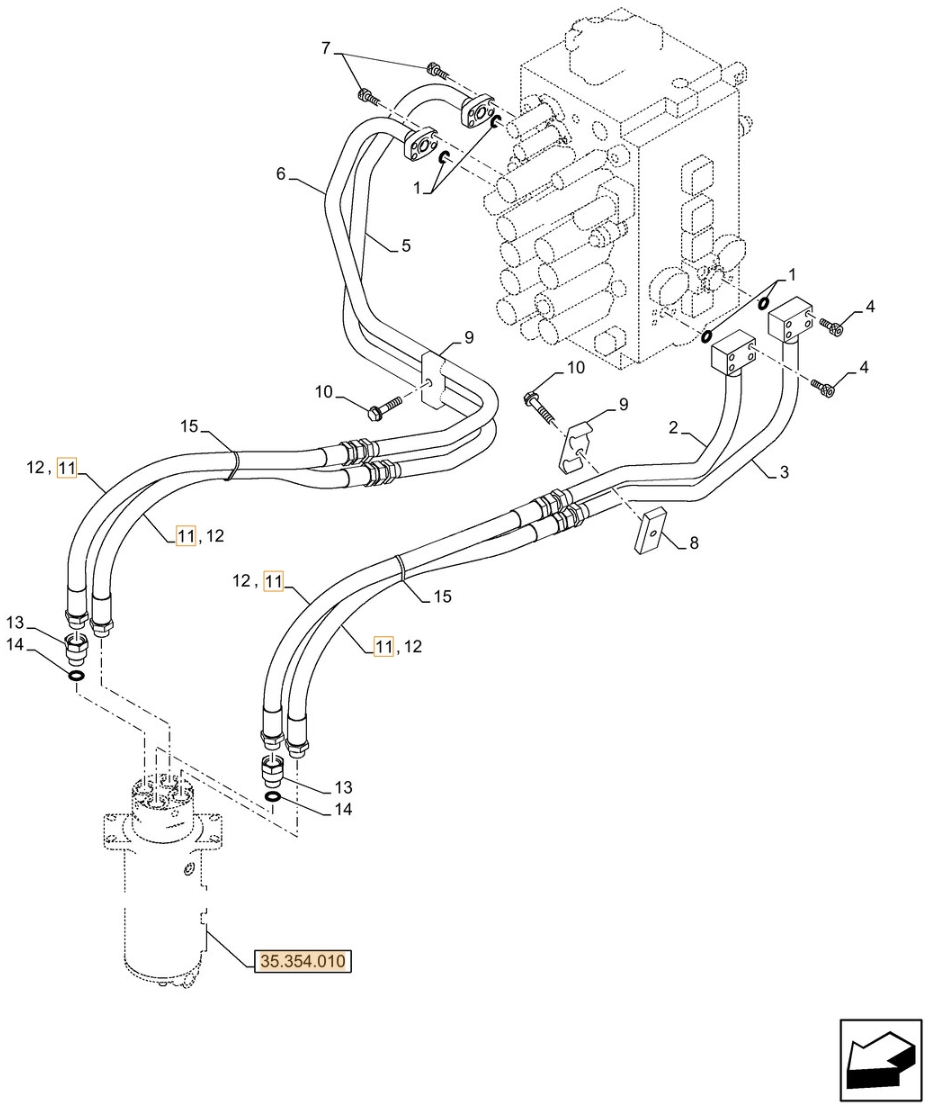

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KRJ10710 before removing the hose.

Part number: KRJ10710
Diagram pipe number: 11
Installation route: 回转接头~分配阀
Hose specification: DN19;4SP-12;35MPa
Finished length: 780 mm
Working pressure: 35 MPa
Left fitting: 英制外螺纹平面密封
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 4

Same system

Diagram Pipe No. 10

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,150 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
