Individual hose record

DS2093036 Hose Repair Specifications

Excavator · Doosan · DX27Z · Control Valve

Finished length750 mm

Locate this hose

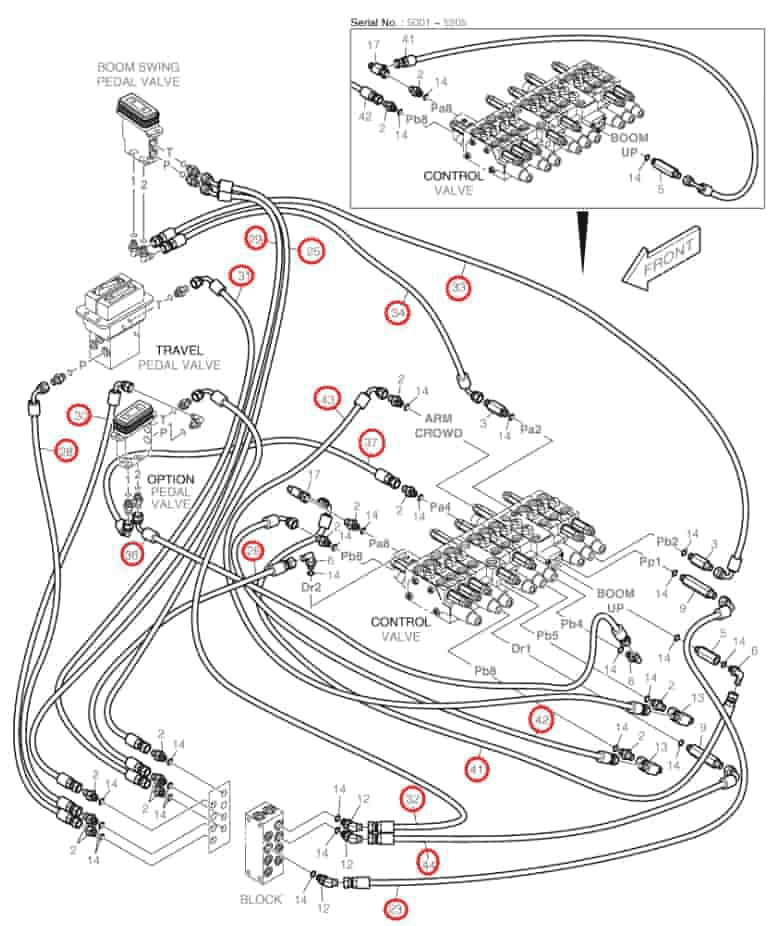

Installation diagram — Pipe No. 41

Locate Pipe No. 41 in the diagram, then confirm part number DS2093036 before removing the hose.

Part number: DS2093036
Diagram pipe number: 41
Installation route: 分配阀PA8口~分配阀(大臂抬升)口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 750 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 44

Installation route: 分配阀DR1口~进回油阀

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 42

Installation route: 分配阀左PB8口~分配阀右PB8口

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 43

Installation route: 分配阀PB5口~分配阀(小臂内收)口

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
