Individual hose record
4225422 Hose Repair Specifications
Excavator · Hitachi · EX270LC · Swing Motor
Finished length630 mm
Locate this hose

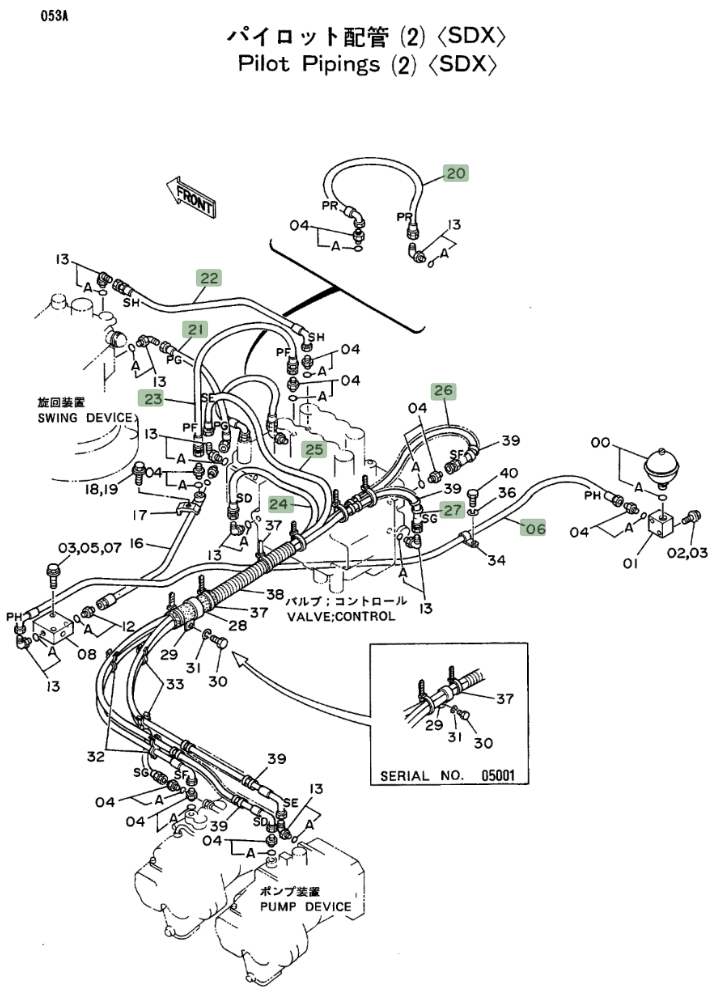

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4225422 before removing the hose.
Repair specifications
- Part number
- 4225422
- Diagram pipe number
- 21
- Installation route
- 回转马达~过渡阀块(分配阀)
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 630 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
