Individual hose record

4650823 Hose Repair Specifications

Excavator · Hitachi · ZX240LC-3 · Attachments – Breaker

Finished length1,650 mm

Locate this hose

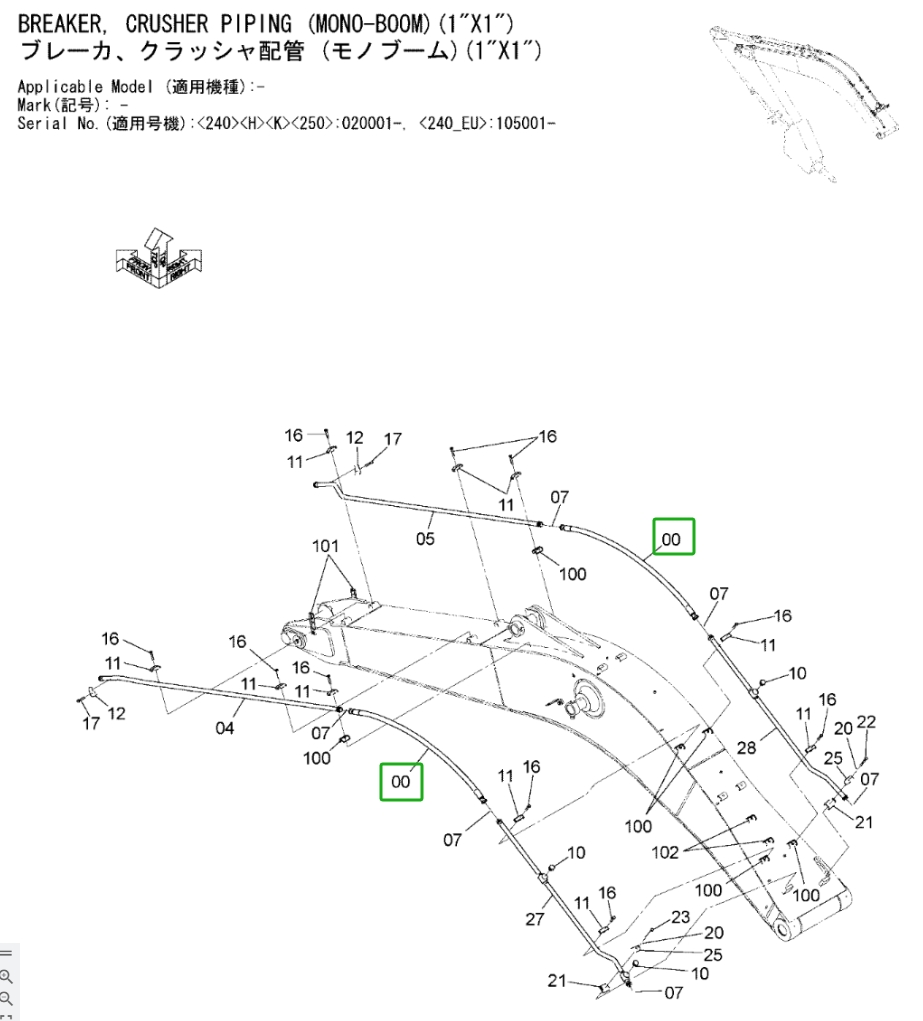

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4650823 before removing the hose.

Hitachi ZX240LC-3 installation diagram showing hydraulic hose 4650823 at Pipe No. 0 — **Hitachi ZX240LC-3**Part 4650823 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4650823
Diagram pipe number: 0
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 1,650 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 77

4681784

Installation route: 液压油箱~电磁阀(破碎器)

Length: 1,950 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4652746

Installation route: 小臂破碎器截止阀

Length: 1,600 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

4678895

Installation route: 电磁阀(破碎器)~接线板(隔板)

Length: 510 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications

Diagram Pipe No. 28

4681557

Installation route: 止动阀(破碎器)~接线板(隔板)

Length: 600 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 0

4648202

Installation route: 破碎器踏板~中转接头

Length: 3,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 47

4670735

Installation route: 液压油箱~接线板(隔板)

Length: 1,800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 20A

4250888

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,200 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 35A

4649408

Installation route: 大臂(后段)~止动阀(破碎器)

Length: 1,150 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
