Individual hose record
730502009275 Hose Repair Specifications
Excavator · Sunward · SWE215F-5 · Attachments – Breaker
Finished length1,250 mm
Locate this hose

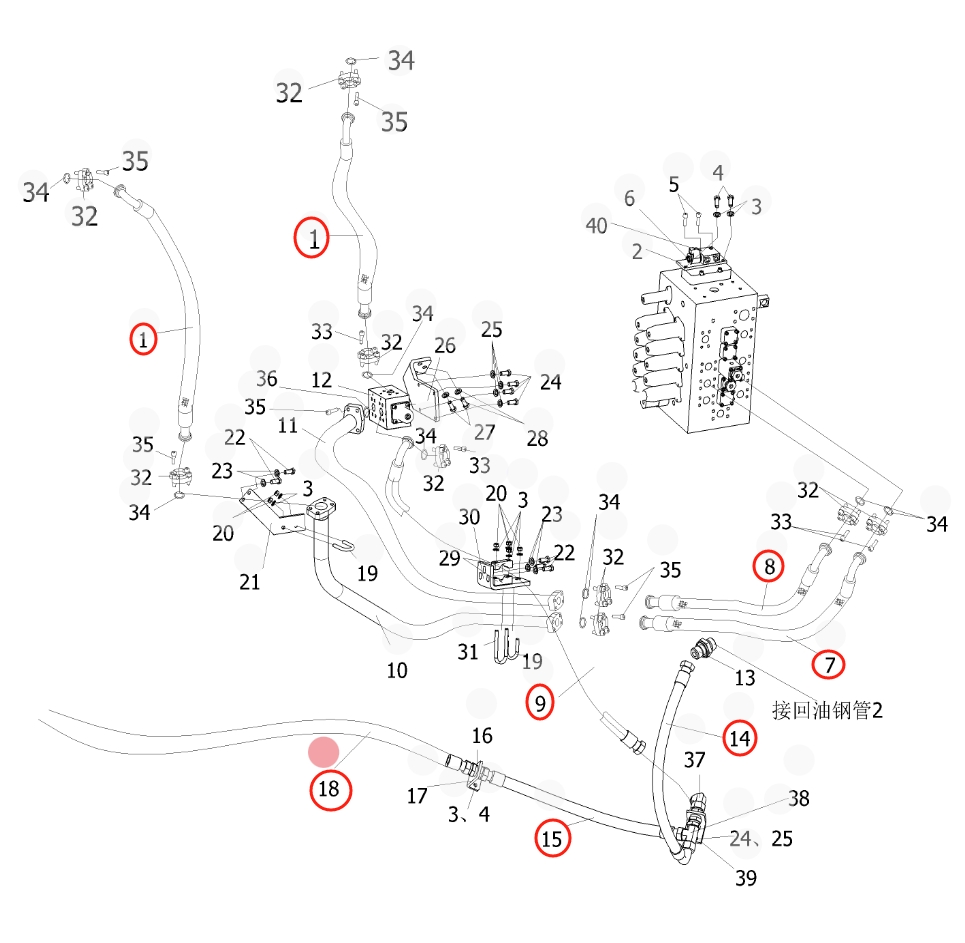

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 730502009275 before removing the hose.
Repair specifications
- Part number
- 730502009275
- Diagram pipe number
- 9
- Installation route
- 过渡阀块(破碎器)~回油铁管(液压油箱)
- Hose specification
- DN25;1SN-16;8.8MPa
- Finished length
- 1,250 mm
- Working pressure
- 8.8 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°法兰-轻型
- Quantity
- 1
