Individual hose record

DS2012150 Hose Repair Specifications

Excavator · Doosan · DX140LC-3 · Hydraulic Pump

Finished length1,080 mm

Locate this hose

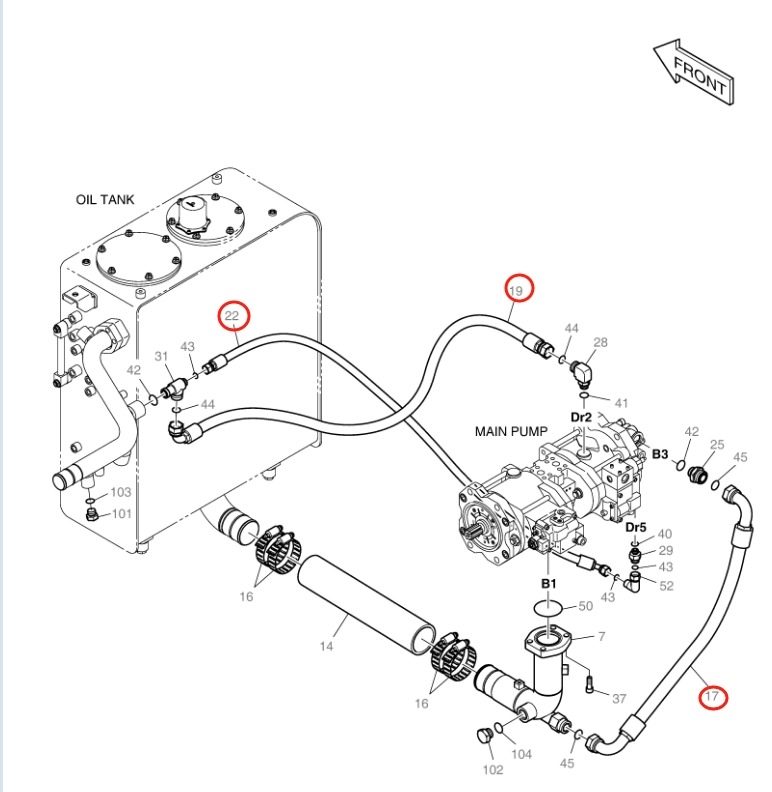

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number DS2012150 before removing the hose.

Part number: DS2012150
Diagram pipe number: 22
Installation route: 液压泵Dr5口~回油铁管(液压油箱)
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,080 mm
Working pressure: 16 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 1

Same system

Hose record

Installation route: 液压泵Dr5口~回油铁管(液压油箱)

Length: 1,080 mm
Specification: DN13;1SN-08;16MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

Diagram Pipe No. 19

Installation route: 液压泵Dr2口~回油铁管(液压油箱)

Length: 990 mm
Specification: DN13;1SN-08;16MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Hose record

Installation route: 液压泵Dr2口~回油铁管(液压油箱)

Length: 990 mm
Specification: DN13;1SN-08;16MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
