Individual hose record

4436352 Hose Repair Specifications

Excavator · Hitachi · ZX75US-3 · Pedal

Finished length600 mm

Locate this hose

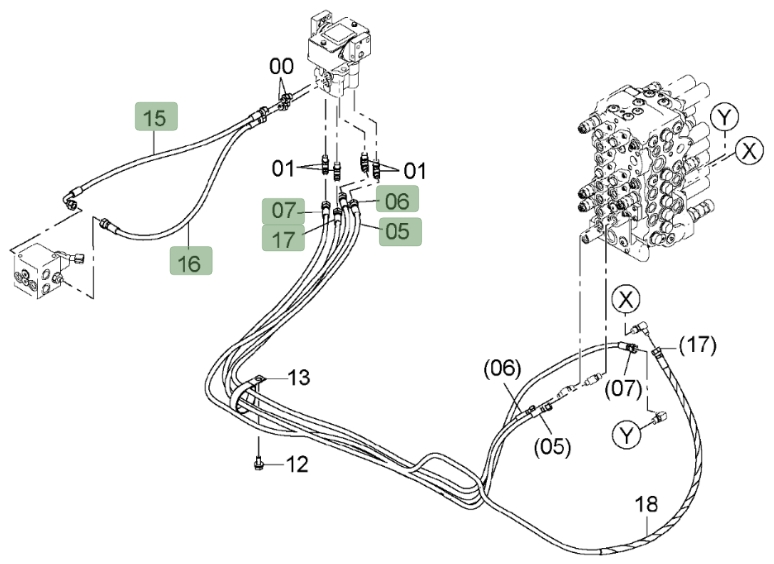

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4436352 before removing the hose.

Hitachi ZX75US-3 installation diagram showing hydraulic hose 4436352 at Pipe No. 16 — Hitachi ZX75US-3Part 4436352 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 4436352
Diagram pipe number: 16
Installation route: 行走推杆~进回油阀
Hose specification: DN6;1SN-4;7Mpa
Finished length: 600 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
