Individual hose record

730502002123 Hose Repair Specifications

Excavator · Sunward · SWE210 · Attachments – Lock Valve

Finished length160 mm

Locate this hose

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 730502002123 before removing the hose.

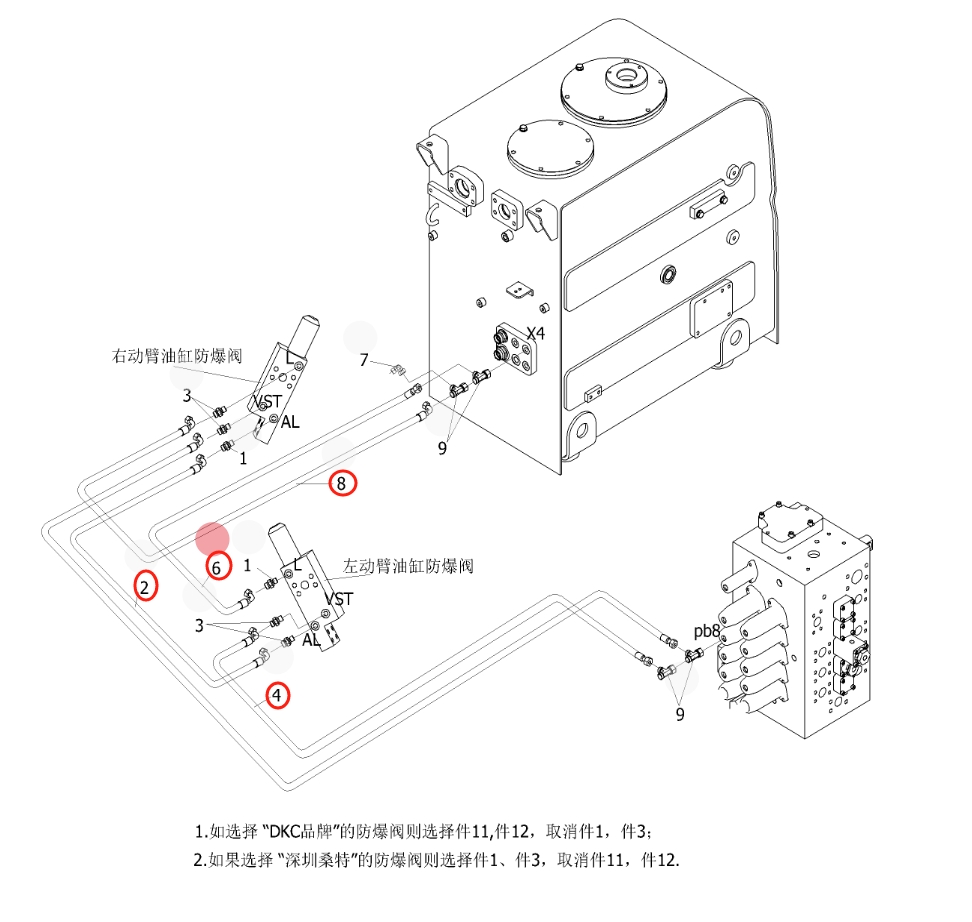

Sunward SWE210 installation diagram showing hydraulic hose 730502002123 at Pipe No. 4
Sunward SWE210Part 730502002123 · Pipe No. 4Open full-size diagram

Repair specifications

Part number
730502002123
Diagram pipe number
4
Installation route
左大臂油缸锁止阀~分配阀前
Hose specification
DN6;1SN-04;22.5MPa
Finished length
160 mm
Working pressure
22.5 MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 2

730502001632

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length
1,350 mm
Specification
DN8;1SN-05;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 6

730501002290

Installation route: 左大臂油缸锁止阀~液压油箱

Length
950 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications
