Individual hose record

730501000814 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Solenoid Valve

Finished length1,550 mm

Locate this hose

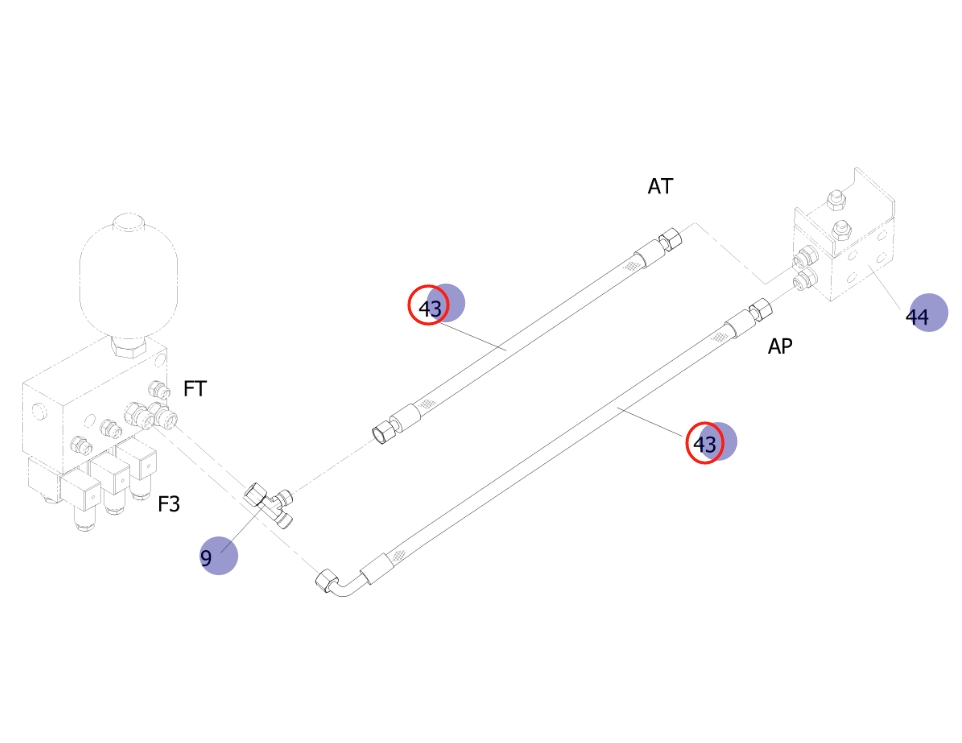

Installation diagram — Pipe No. 43

Locate Pipe No. 43 in the diagram, then confirm part number 730501000814 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 730501000814 at Pipe No. 43 — Sunward SWE215F-5Part 730501000814 · Pipe No. 43Open full-size diagram

Repair specifications

Part number: 730501000814
Diagram pipe number: 43
Installation route: 电磁阀(蓄能器)FT~进回油阀AT
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 1,550 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1
