Individual hose record

KHJ2050 Hose Repair Specifications

Excavator · Case · CX180C-8 LC · Control Lever

Finished length1,000 mm

Locate this hose

Installation diagram — Pipe No. 78

Locate Pipe No. 78 in the diagram, then confirm part number KHJ2050 before removing the hose.

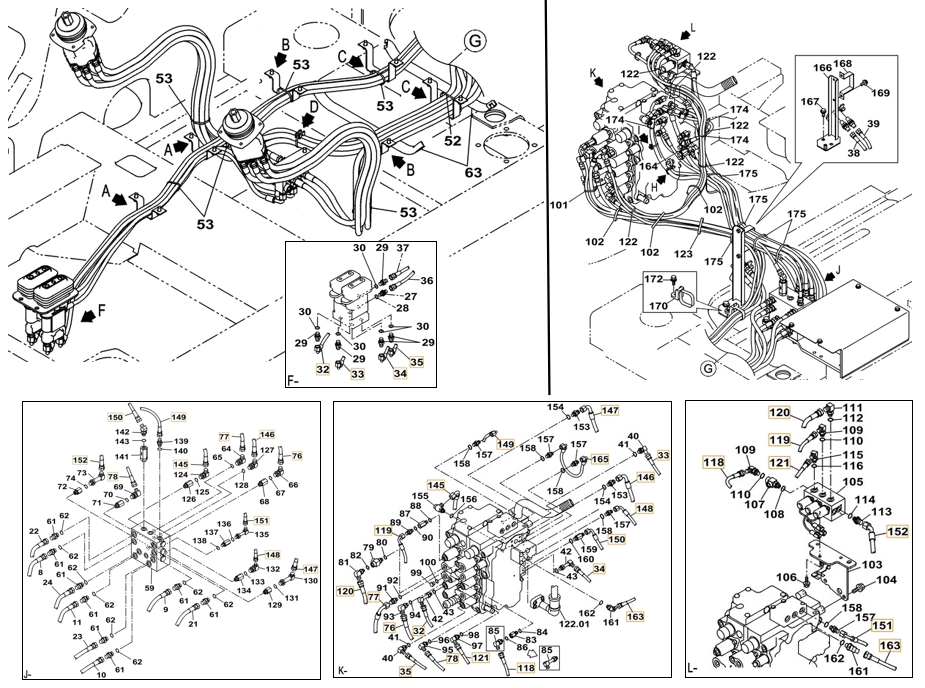

Case CX180C-8 LC installation diagram showing hydraulic hose KHJ2050 at Pipe No. 78 — **Case CX180C-8 LC**Part KHJ2050 · Pipe No. 78Open full-size diagram

Repair specifications

Part number: KHJ2050
Diagram pipe number: 78
Installation route: 中转接头~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
