Individual hose record

4334911 Hose Repair Specifications

Excavator · Hitachi · EX200LC-5 · Swivel Joint

Finished length2,000 mm

Locate this hose

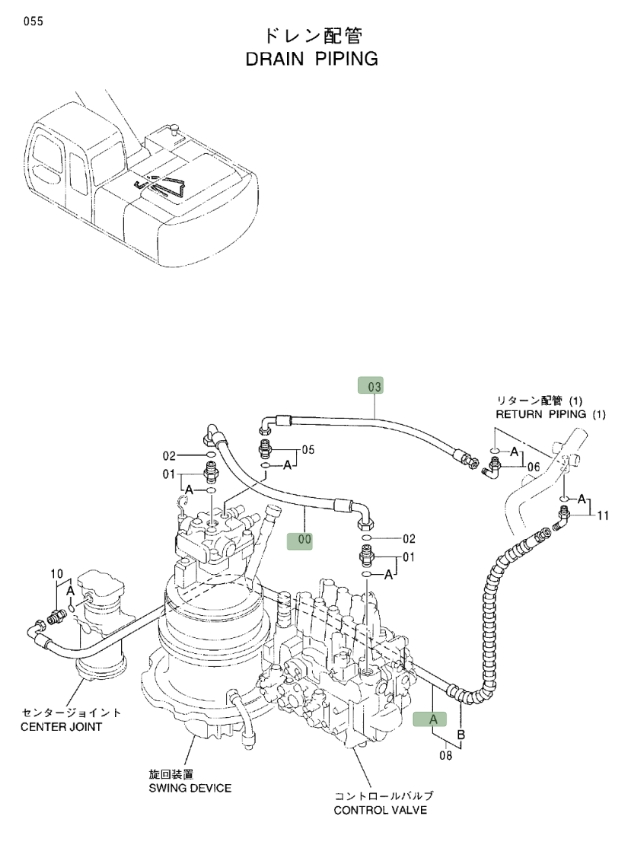

Installation diagram — Pipe No. 8A

Locate Pipe No. 8A in the diagram, then confirm part number 4334911 before removing the hose.

Hitachi EX200LC-5 installation diagram showing hydraulic hose 4334911 at Pipe No. 8A — **Hitachi EX200LC-5**Part 4334911 · Pipe No. 8AOpen full-size diagram

Repair specifications

Part number: 4334911
Diagram pipe number: 8A
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN12;1SN-08;7Mpa
Finished length: 2,000 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21

4239715

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 14

4262931

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,100 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

9135458

Installation route: 回转接头~回油铁管(液压油箱)

Length: 2,000 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 21

4401963

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 20

4346006

Installation route: 回转接头~电磁阀

Length: 1,500 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 14

4286515

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 21

4262276

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,200 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 21

4402568

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
