Individual hose record

4429283 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Swivel Joint

Finished length2,600 mm

Locate this hose

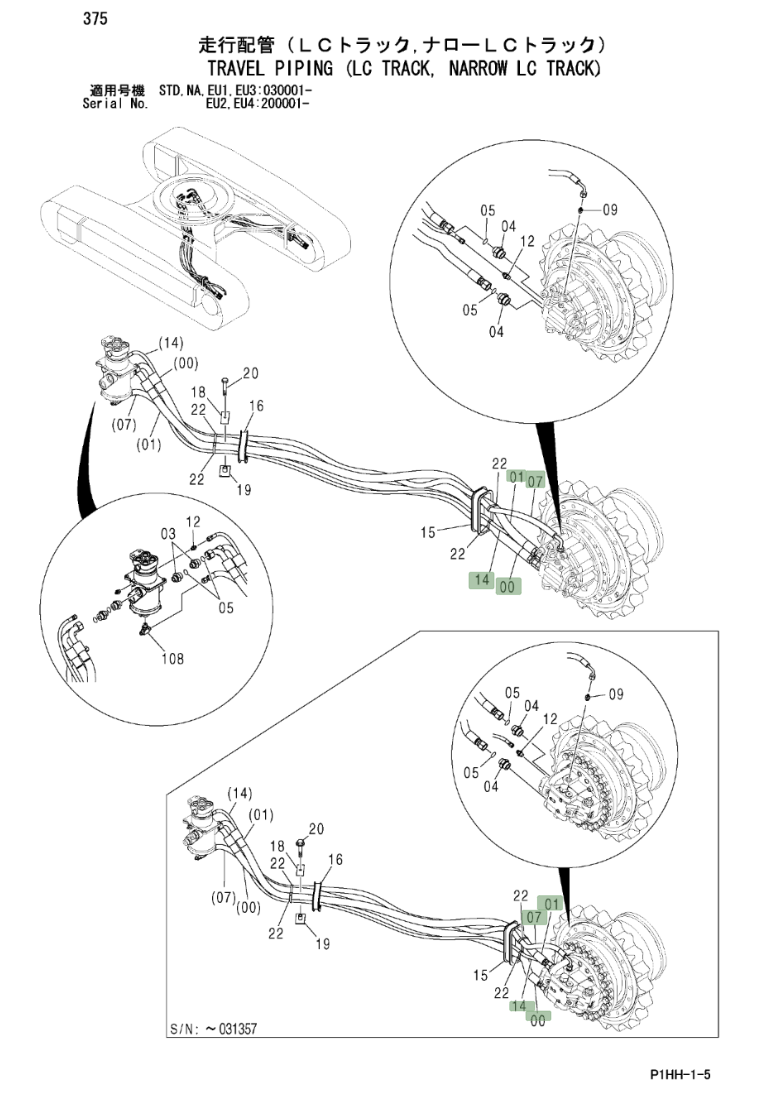

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4429283 before removing the hose.

Hitachi ZX330LC installation diagram showing hydraulic hose 4429283 at Pipe No. 14 — **Hitachi ZX330LC**Part 4429283 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 4429283
Diagram pipe number: 14
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,600 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
