Individual hose record
4486008 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Attachments – Quick Coupler
Finished length2,500 mm
Locate this hose

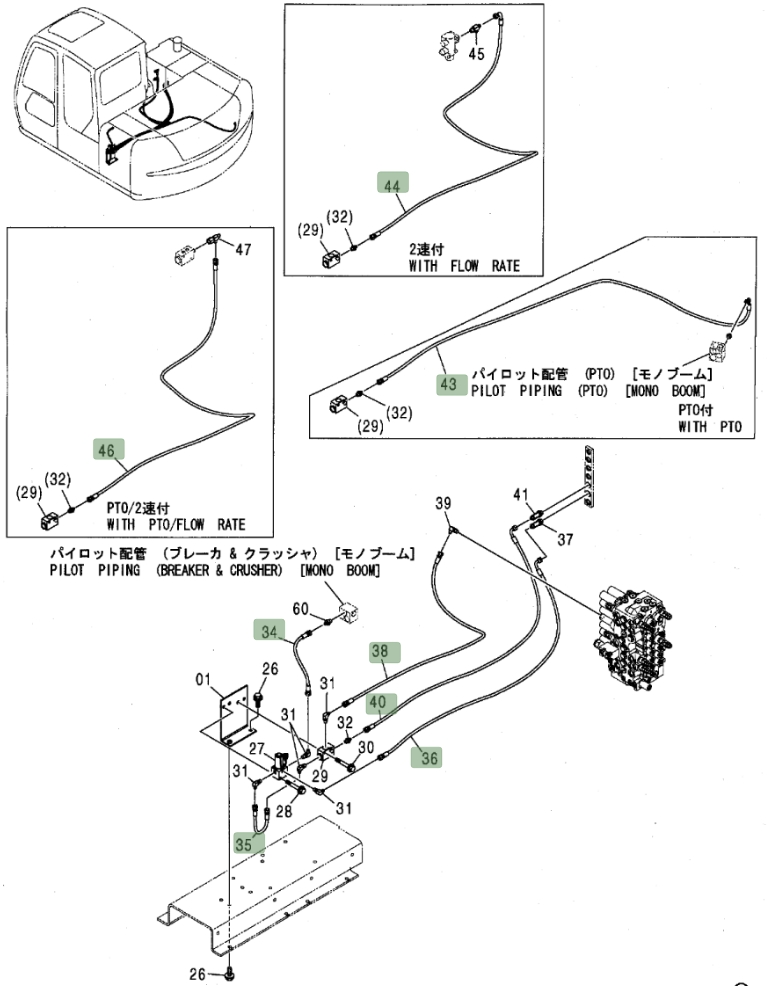

Installation diagram — Pipe No. 46
Locate Pipe No. 46 in the diagram, then confirm part number 4486008 before removing the hose.
Repair specifications
- Part number
- 4486008
- Diagram pipe number
- 46
- Installation route
- 流速切换阀~过渡阀块(快换)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 2,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
