Individual hose record

KHJ11540 Hose Repair Specifications

Excavator · Case · CX210C LC · Control Lever

Finished length1,450 mm

Locate this hose

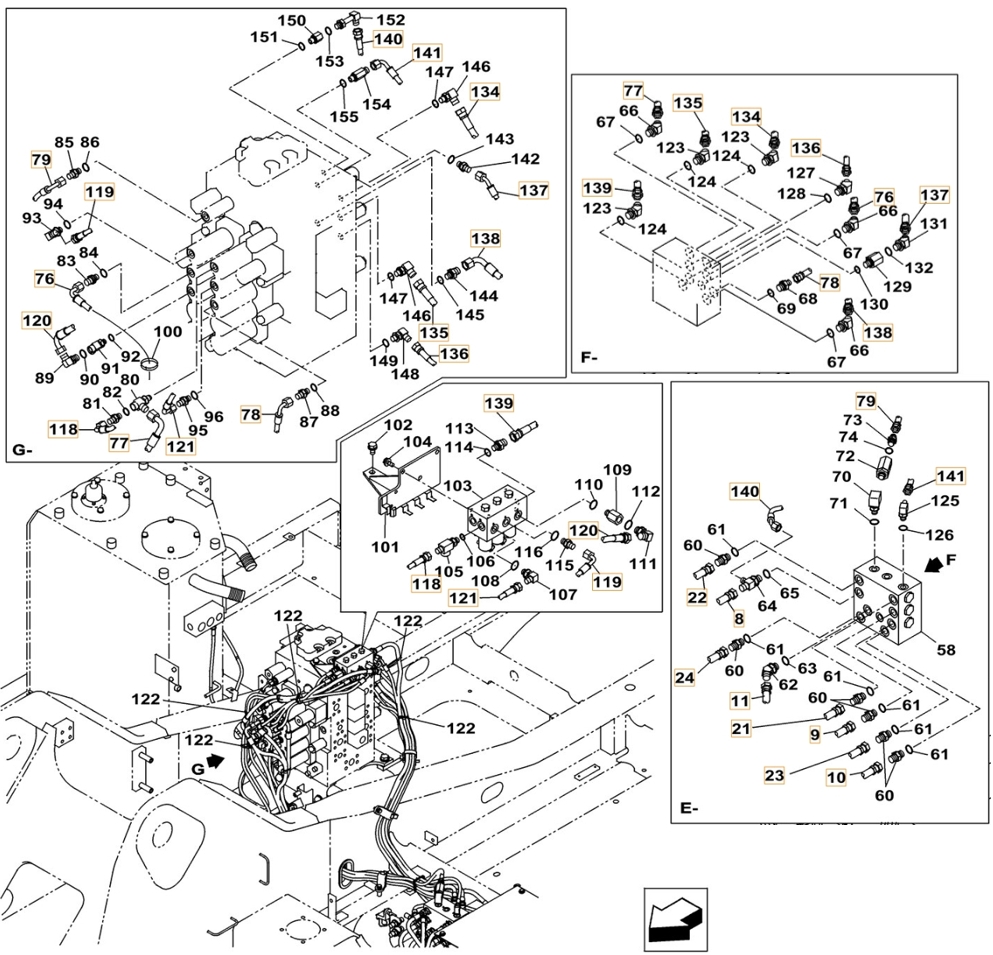

Installation diagram — Pipe No. 78

Locate Pipe No. 78 in the diagram, then confirm part number KHJ11540 before removing the hose.

Case CX210C LC installation diagram showing hydraulic hose KHJ11540 at Pipe No. 78 — **Case CX210C LC**Part KHJ11540 · Pipe No. 78Open full-size diagram

Repair specifications

Part number: KHJ11540
Diagram pipe number: 78
Installation route: 中转接头~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,450 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
