Individual hose record
4343209 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Attachments – Breaker
Finished length900 mm
Locate this hose

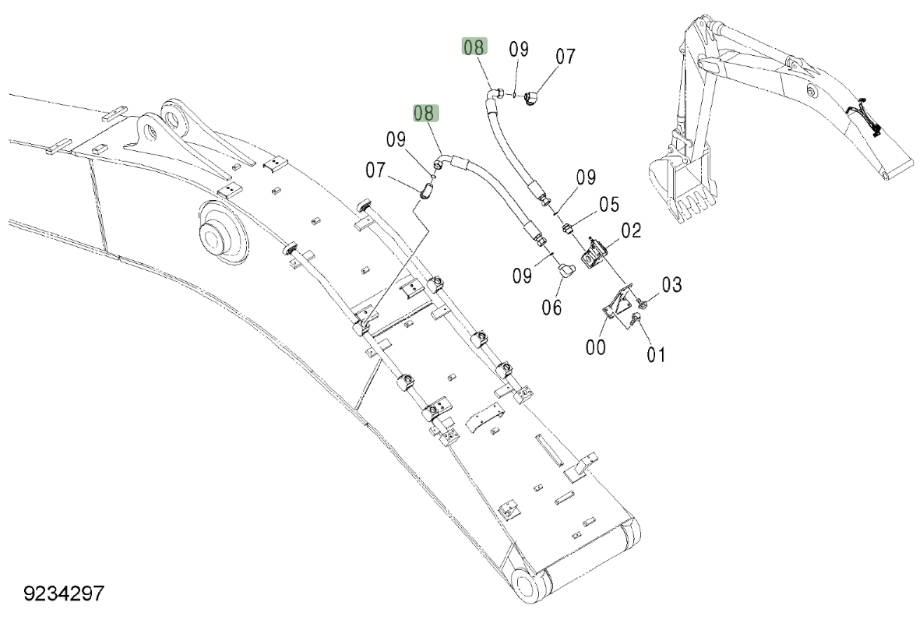

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4343209 before removing the hose.
Repair specifications
- Part number
- 4343209
- Diagram pipe number
- 8
- Installation route
- 大臂(后段)~卸压安全阀(破碎器)
- Hose specification
- DN32;4SP-20;32Mpa
- Finished length
- 900 mm
- Working pressure
- 32 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 2
