Individual hose record

4669997 Hose Repair Specifications

Excavator · Hitachi · ZX200LC-3 · Grease Lines

Finished length5,650 mm

Locate this hose

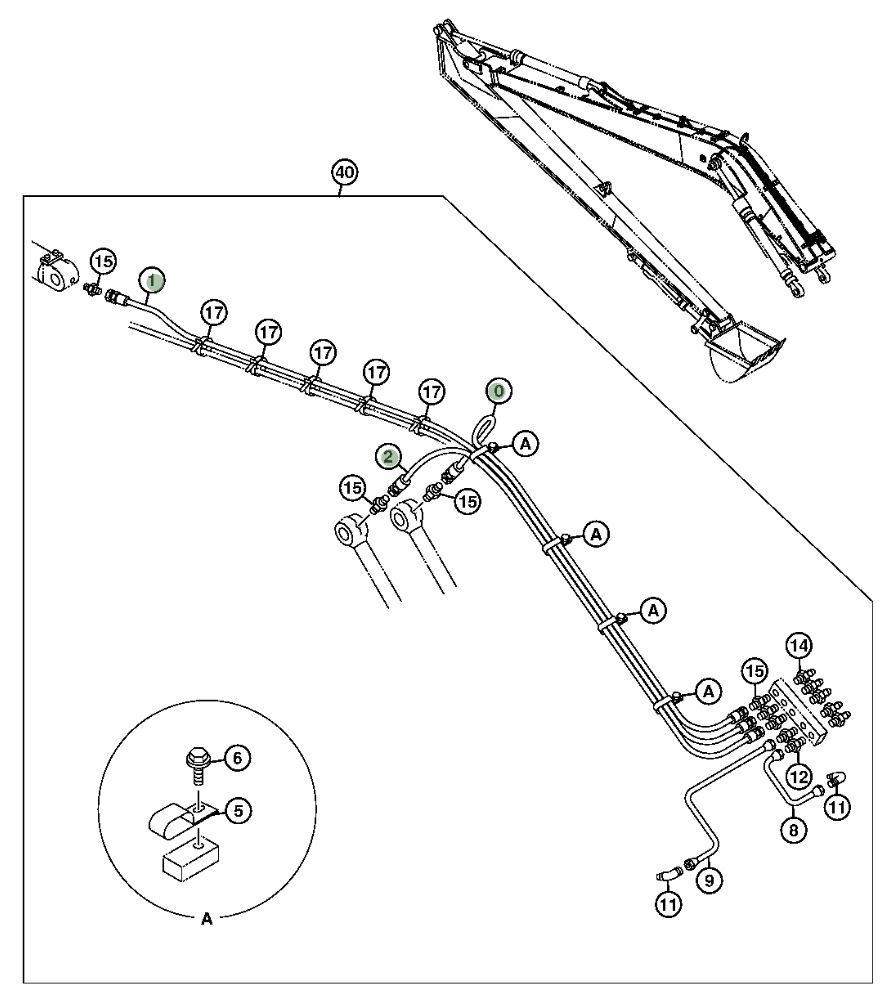

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4669997 before removing the hose.

Hitachi ZX200LC-3 installation diagram showing hydraulic hose 4669997 at Pipe No. 1 — Hitachi ZX200LC-3Part 4669997 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4669997
Diagram pipe number: 1
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-4;7Mpa
Finished length: 5,650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
