Individual hose record
730502002857 Hose Repair Specifications
Excavator · Sunward · SWE150E · Attachments – Breaker
Finished length570 mm
Locate this hose

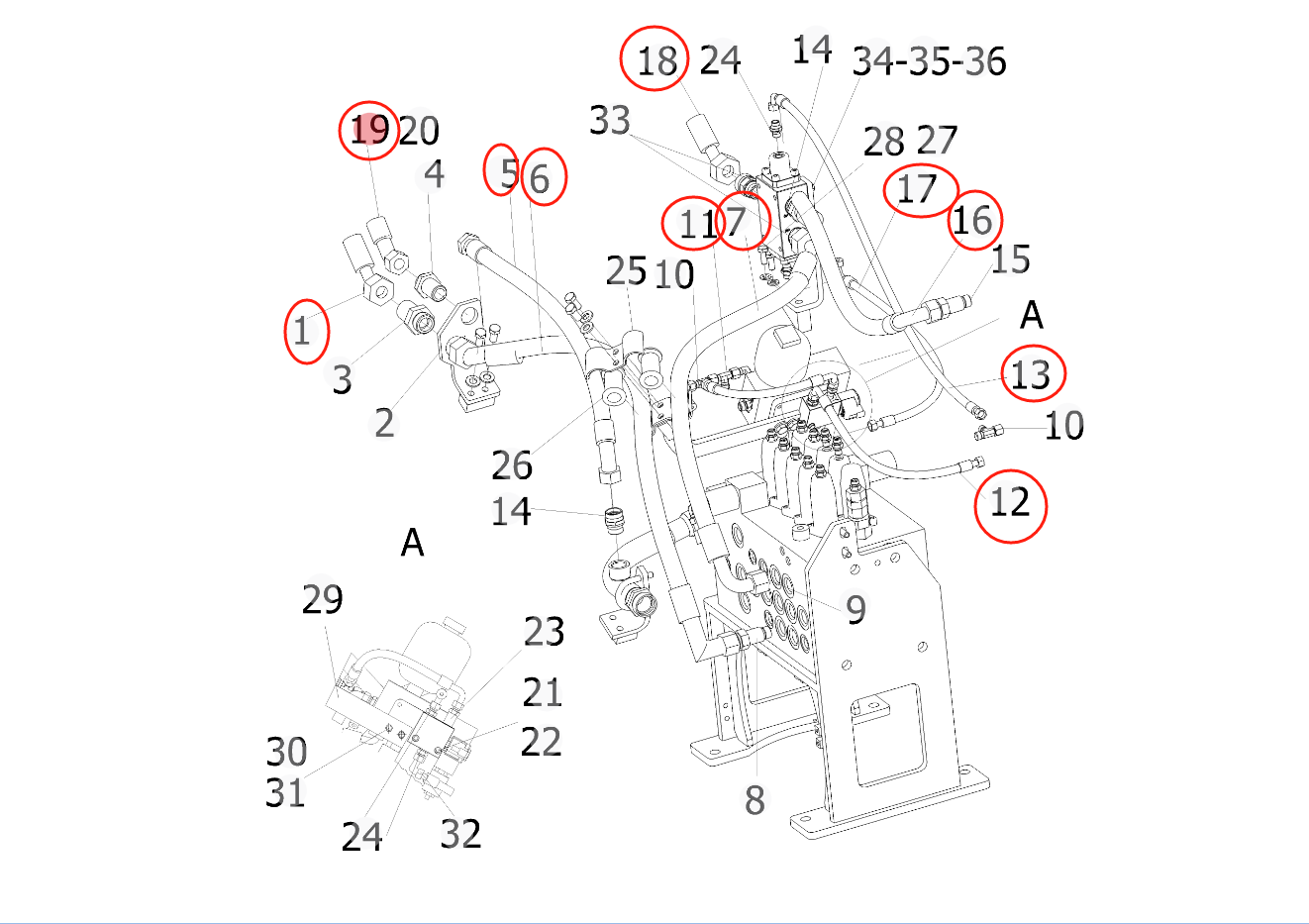

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 730502002857 before removing the hose.
Repair specifications
- Part number
- 730502002857
- Diagram pipe number
- 17
- Installation route
- 过渡阀块(破碎器)~蓄能器电磁阀(破碎器)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 570 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
