Individual hose record
4665242 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-5N · Pedal
Finished length350 mm
Locate this hose

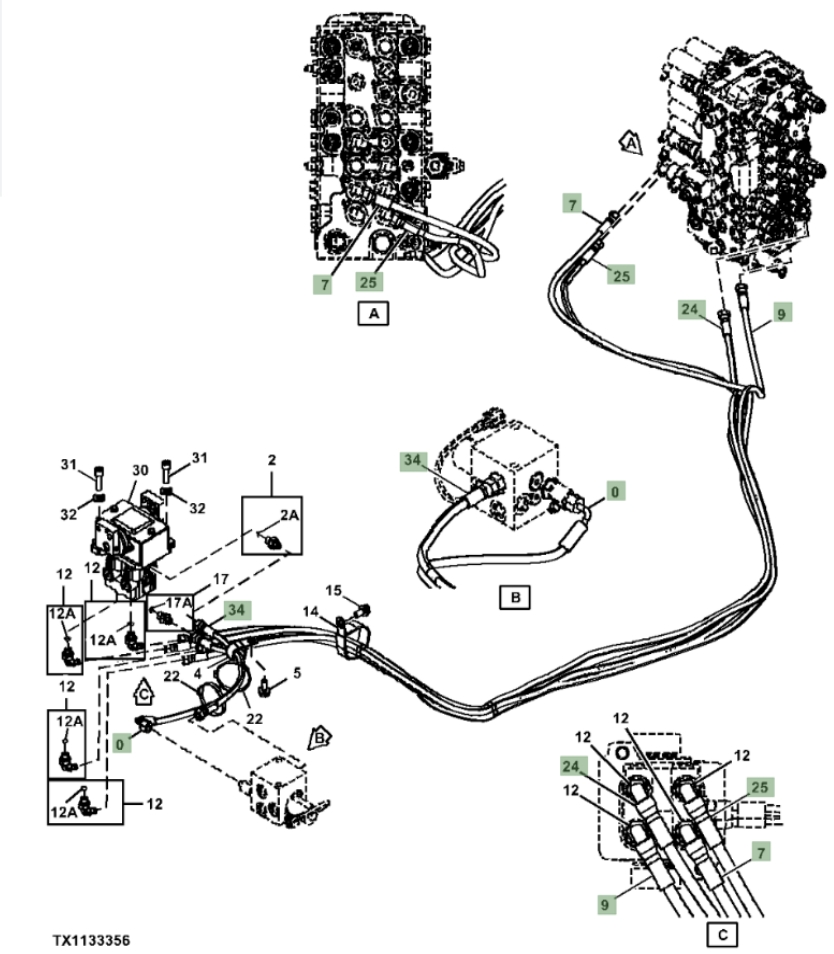

Installation diagram — Pipe No. 34
Locate Pipe No. 34 in the diagram, then confirm part number 4665242 before removing the hose.
Repair specifications
- Part number
- 4665242
- Diagram pipe number
- 34
- Installation route
- 行走踏板~进回油阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 350 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
