Individual hose record

4473135 Hose Repair Specifications

Excavator · Hitachi · ZX210F-3 · Grease Lines

Finished length3,100 mm

Locate this hose

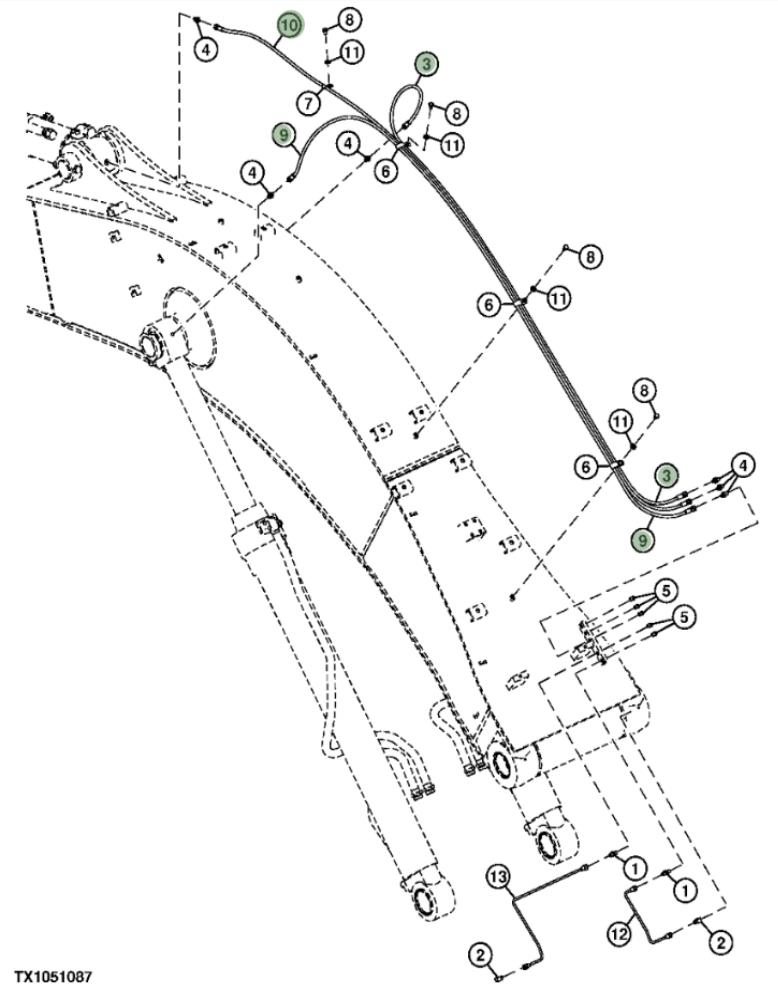

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4473135 before removing the hose.

Hitachi ZX210F-3 installation diagram showing hydraulic hose 4473135 at Pipe No. 9 — Hitachi ZX210F-3Part 4473135 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4473135
Diagram pipe number: 9
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,100 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4622684

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
