Individual hose record

159224A1 Hose Repair Specifications

Excavator · Case · CX210LR · Control Lever

Finished length900 mm

Locate this hose

Installation diagram — Pipe No. 84

Locate Pipe No. 84 in the diagram, then confirm part number 159224A1 before removing the hose.

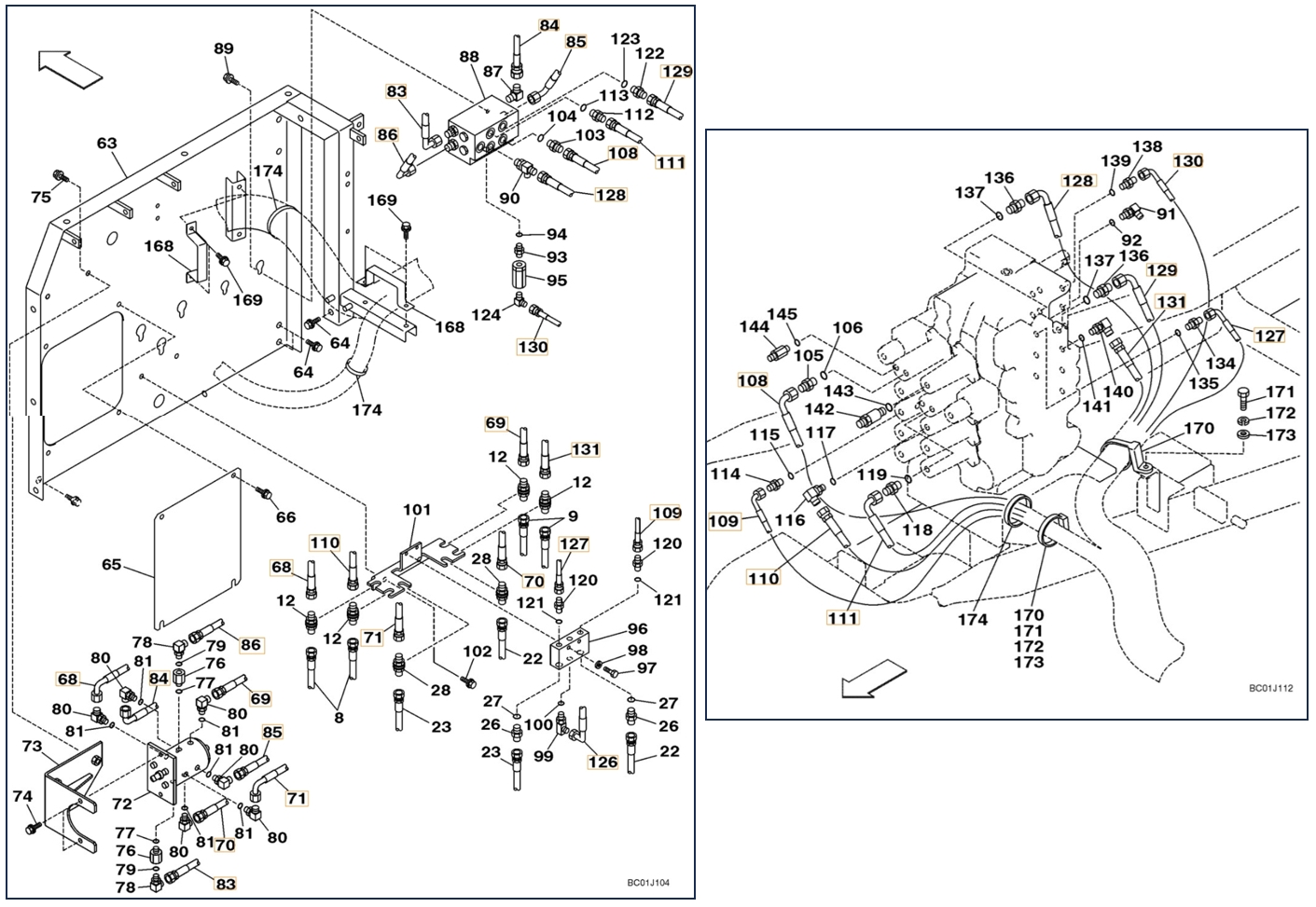

Case CX210LR installation diagram showing hydraulic hose 159224A1 at Pipe No. 84 — **Case CX210LR**Part 159224A1 · Pipe No. 84Open full-size diagram

Repair specifications

Part number: 159224A1
Diagram pipe number: 84
Installation route: 中转接头~模式转换阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 900 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
