Individual hose record

KHJ17570 Hose Repair Specifications

Excavator · Case · CX130B · Control Lever

Finished length1,250 mm

Locate this hose

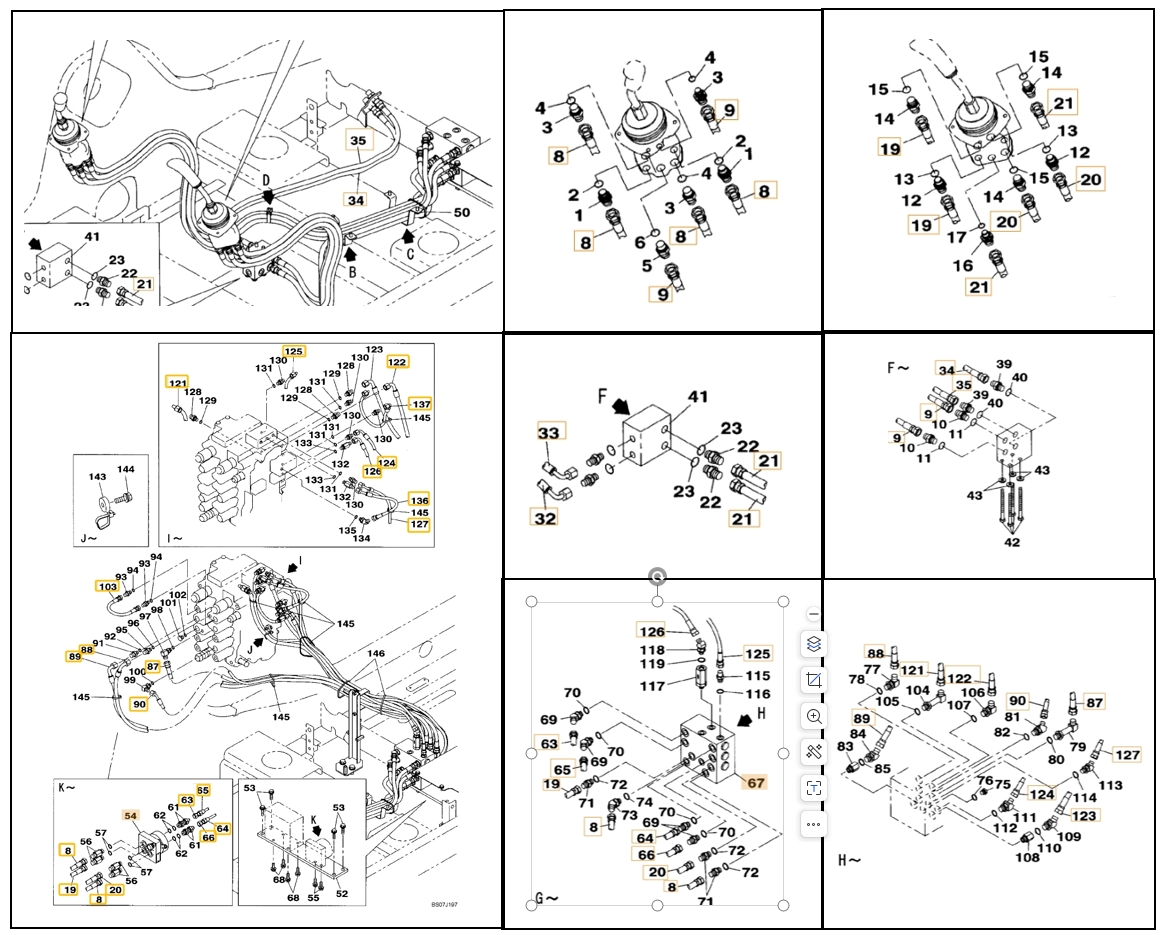

Installation diagram — Pipe No. 90

Locate Pipe No. 90 in the diagram, then confirm part number KHJ17570 before removing the hose.

Case CX130B installation diagram showing hydraulic hose KHJ17570 at Pipe No. 90 — **Case CX130B**Part KHJ17570 · Pipe No. 90Open full-size diagram

Repair specifications

Part number: KHJ17570
Diagram pipe number: 90
Installation route: 中转接头~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,250 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 81

KHJ11590

Installation route: 中转接头~分配阀前

Length: 1,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~中转接头

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 116

KHJ11580

Installation route: 中转接头~分配阀后

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~模式转换阀

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 120

KHJ13800

Installation route: 中转接头~分配阀左

Length: 1,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 82

KHJ2439

Installation route: 中转接头~分配阀前

Length: 1,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 118

KHJ2327

Installation route: 中转接头~分配阀后

Length: 1,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KRJ4381

Installation route: 左手柄~模式转换阀

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
