Individual hose record

4245115 Hose Repair Specifications

Excavator · Hitachi · ZX470LC-5G · Hydraulic Pump

Finished length350 mm

Locate this hose

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4245115 before removing the hose.

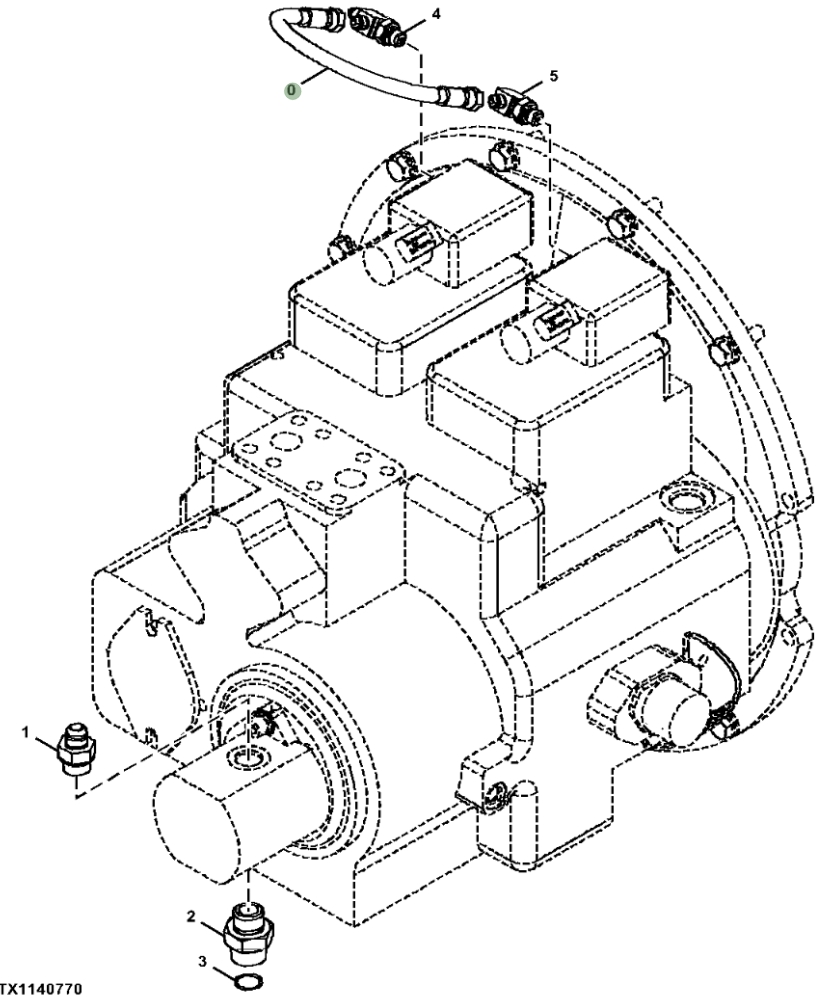

Hitachi ZX470LC-5G installation diagram showing hydraulic hose 4245115 at Pipe No. 0 — Hitachi ZX470LC-5GPart 4245115 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4245115
Diagram pipe number: 0
Installation route: 液压泵左~液压泵右(调节器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 59

4301042

Installation route: 液压泵~先导滤芯

Length: 1,000 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 5

4627700

Installation route: 液压泵~先导滤芯

Length: 750 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

4314388

Installation route: 液压泵~吸油铁管

Length: 480 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 27

4321287

Installation route: 液压泵~液压油箱

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4437397

Installation route: 液压泵左~液压泵右(调节器)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
