- Length
- 1,000 mm
- Specification
- DN12;2SN-8;27.5MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制外螺纹30°内锥
Individual hose record
4426460 Hose Repair Specifications
Excavator · Hitachi · ZX50U · Boom Assembly
Finished length1,170 mm
Locate this hose

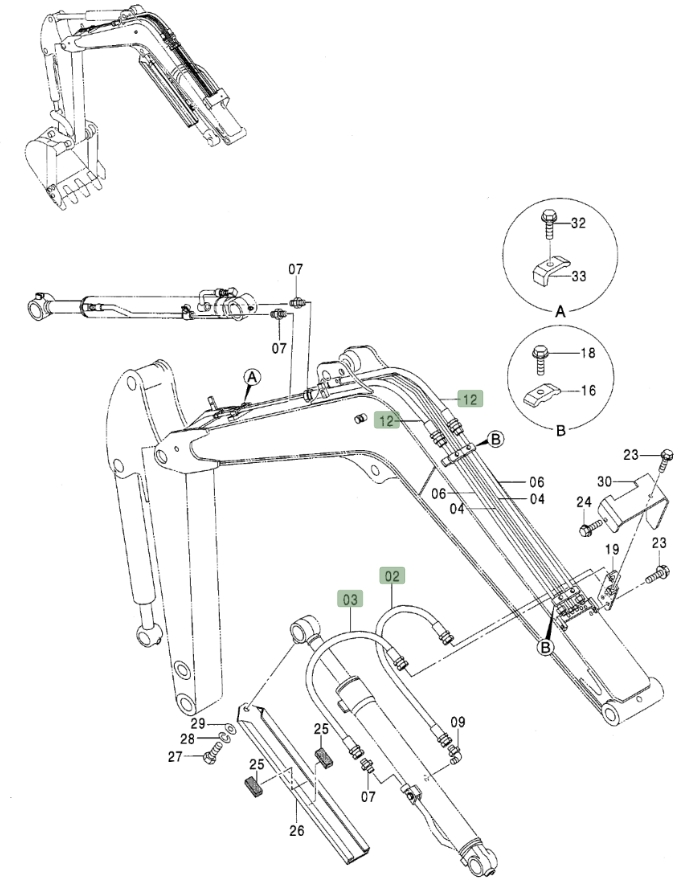

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4426460 before removing the hose.
Repair specifications
- Part number
- 4426460
- Diagram pipe number
- 3
- Installation route
- 大臂油缸
- Hose specification
- DN12;2SN-8;27.5MPa
- Finished length
- 1,170 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制外螺纹30°内锥
- Quantity
- 1
