Individual hose record
730501000465 Hose Repair Specifications
Excavator · Sunward · SWE365-3H · Control Valve
Finished length420 mm
Locate this hose

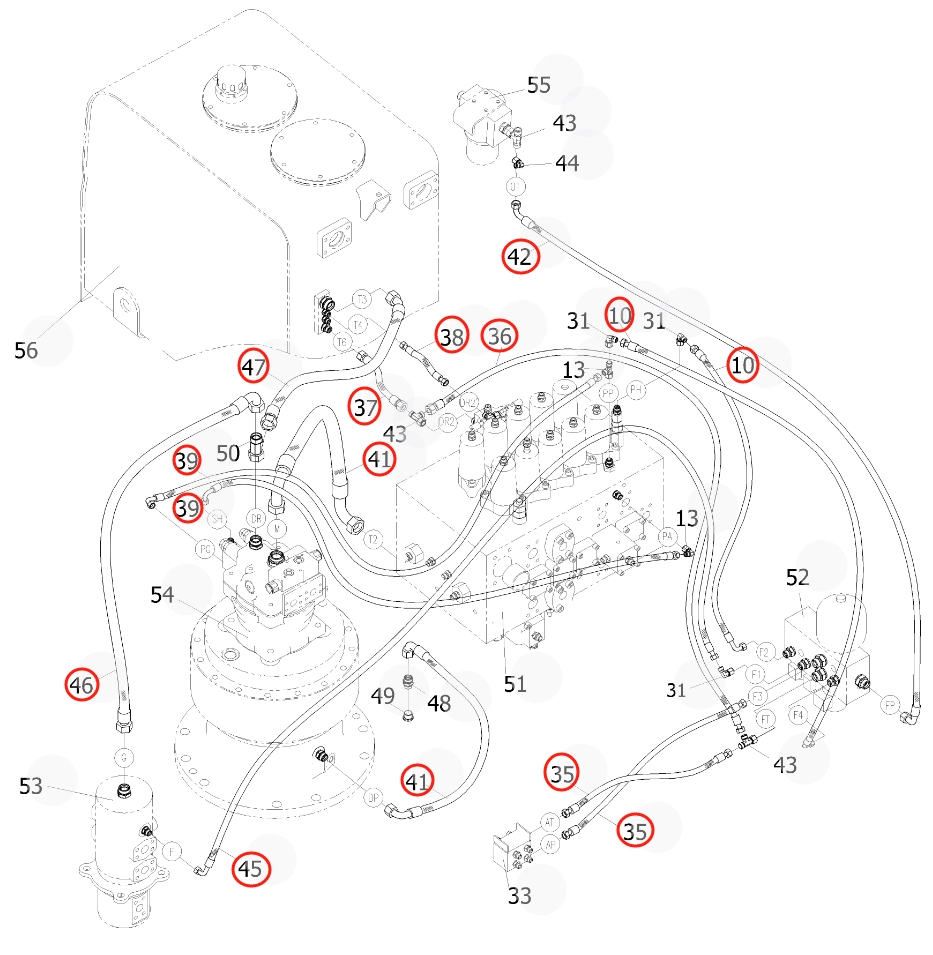

Installation diagram — Pipe No. 38
Locate Pipe No. 38 in the diagram, then confirm part number 730501000465 before removing the hose.
Repair specifications
- Part number
- 730501000465
- Diagram pipe number
- 38
- Installation route
- 分配阀上DR2~液压油箱T4
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 420 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
