Individual hose record
4268968 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3 · Attachments – Breaker
Finished length1,300 mm
Locate this hose

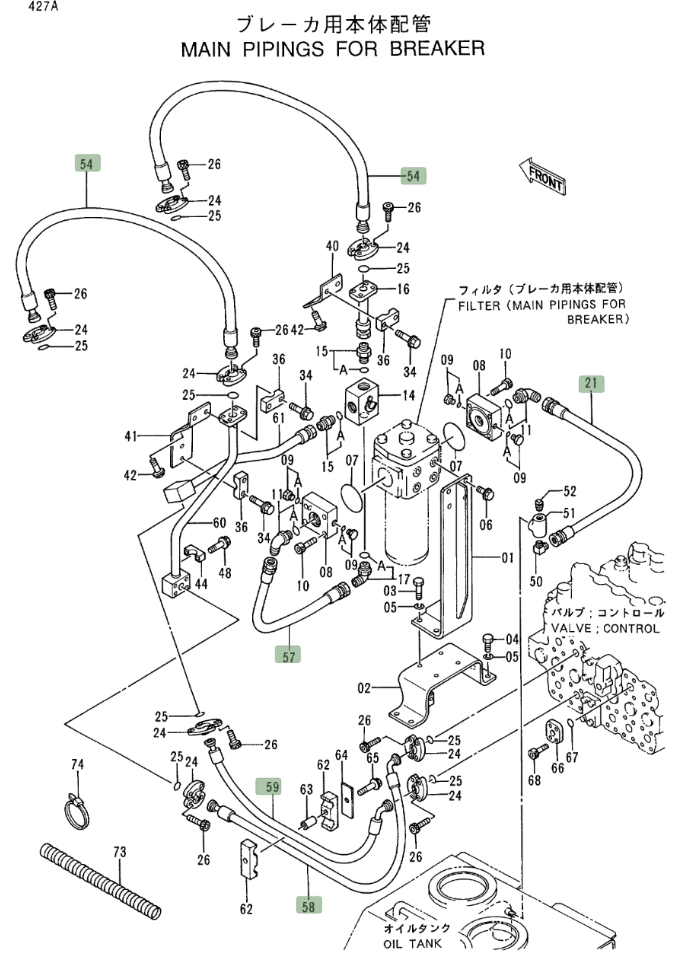

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4268968 before removing the hose.
Repair specifications
- Part number
- 4268968
- Diagram pipe number
- 21
- Installation route
- 破碎器滤芯~回油铁管(分配阀)
- Hose specification
- DN32;2SN-20;7MPa
- Finished length
- 1,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
