Individual hose record
4313438 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-5G · Swivel Joint
Finished length1,900 mm
Locate this hose

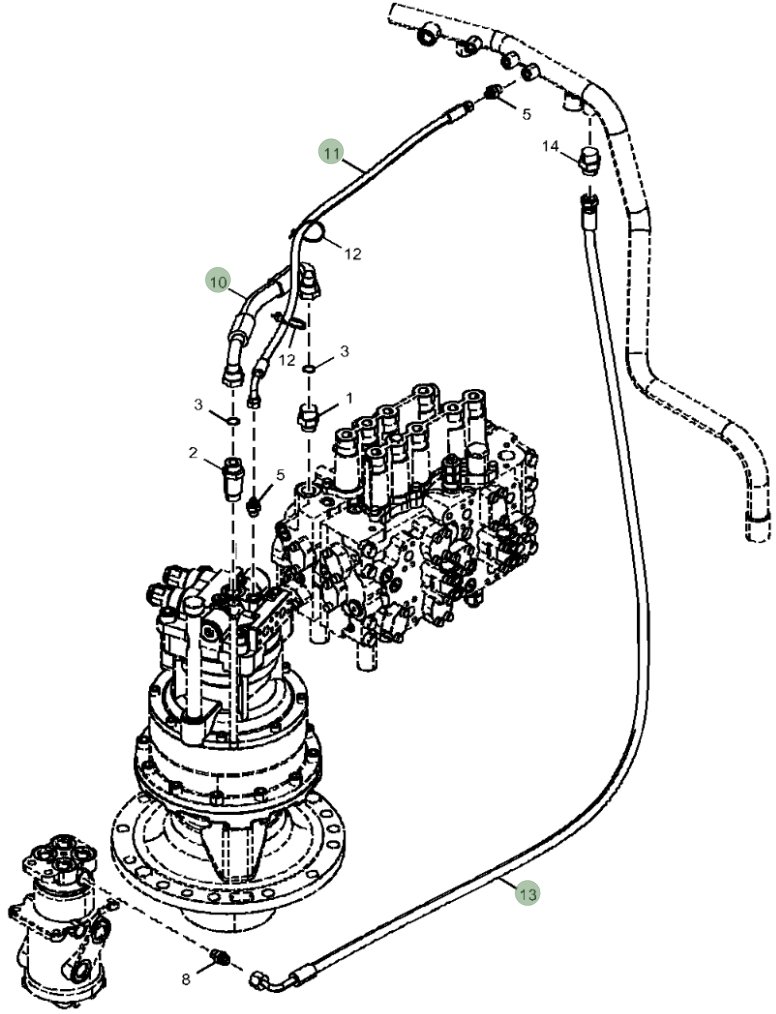

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4313438 before removing the hose.
Repair specifications
- Part number
- 4313438
- Diagram pipe number
- 13
- Installation route
- 回转接头~回油铁管(液压油箱)
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
