Individual hose record
4634382 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Hydraulic Tank
Finished length1,700 mm
Locate this hose

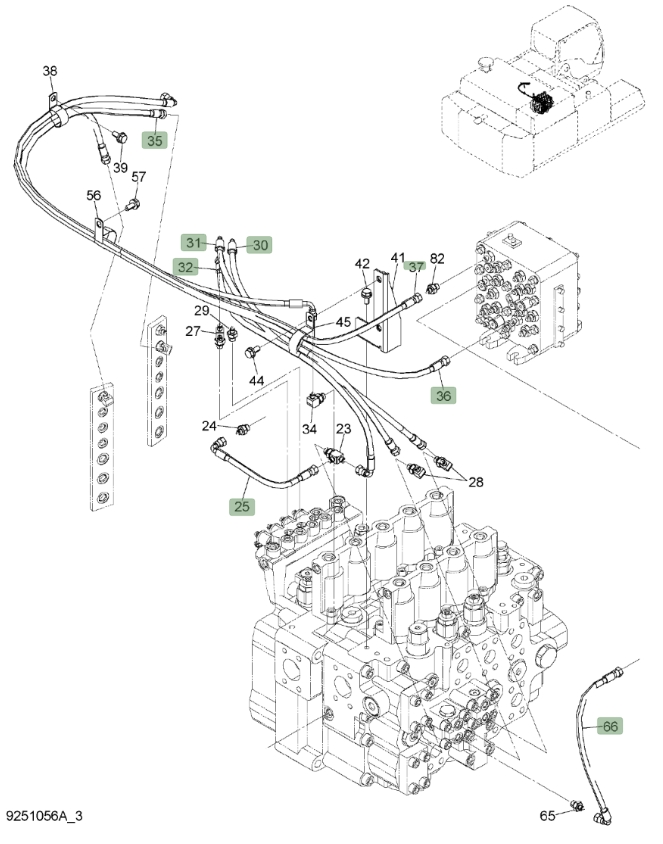

Installation diagram — Pipe No. 37
Locate Pipe No. 37 in the diagram, then confirm part number 4634382 before removing the hose.
Repair specifications
- Part number
- 4634382
- Diagram pipe number
- 37
- Installation route
- 液压油箱~中转接头
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,700 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
