KHJ2092 Hose Repair Specifications

Excavator · Case · CX130E · Attachments – Breaker

Finished length1,000 mm

Locate this hose

Installation diagram — Pipe No. C13

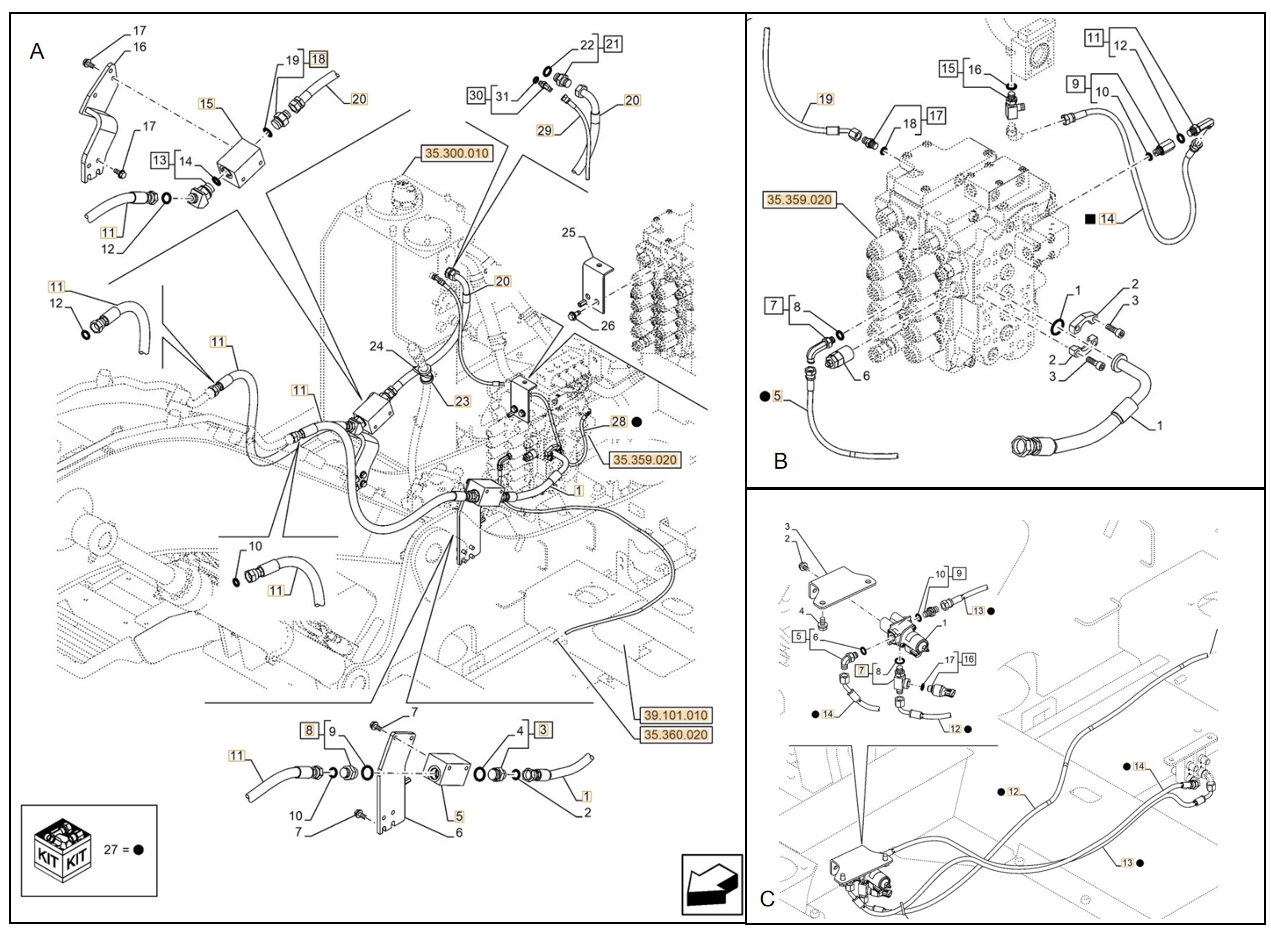

Locate Pipe No. C13 in the diagram, then confirm part number KHJ2092 before removing the hose.

Case CX130E installation diagram showing hydraulic hose KHJ2092 at Pipe No. C13 — **Case CX130E**Part KHJ2092 · Pipe No. C13Open full-size diagram

Repair specifications

Part number: KHJ2092
Diagram pipe number: C13
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 20

KRJ32660

Installation route: 右过渡阀块(破碎器)~液压油箱

Length: 620 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 31

KHJ2195

Installation route: 电磁阀(破碎器)~进回油阀

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 24

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. A27-B9

KHJ25060

Installation route: 破碎器踏板~分配阀后

Length: 3,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 25

KHJ2087

Installation route: 破碎器踏板~进回油阀

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. A26-B8

KHJ25060

Installation route: 破碎器踏板~分配阀前

Length: 3,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B30-C25-E30

KHJ13660

Installation route: 电磁阀(破碎器)~分配阀右

Length: 3,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 15

KHJ2194

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications
