Individual hose record

9265998 Hose Repair Specifications

Excavator · Hitachi · ZX270LC-3 · Solenoid Valve

Finished length3,900 mm

Locate this hose

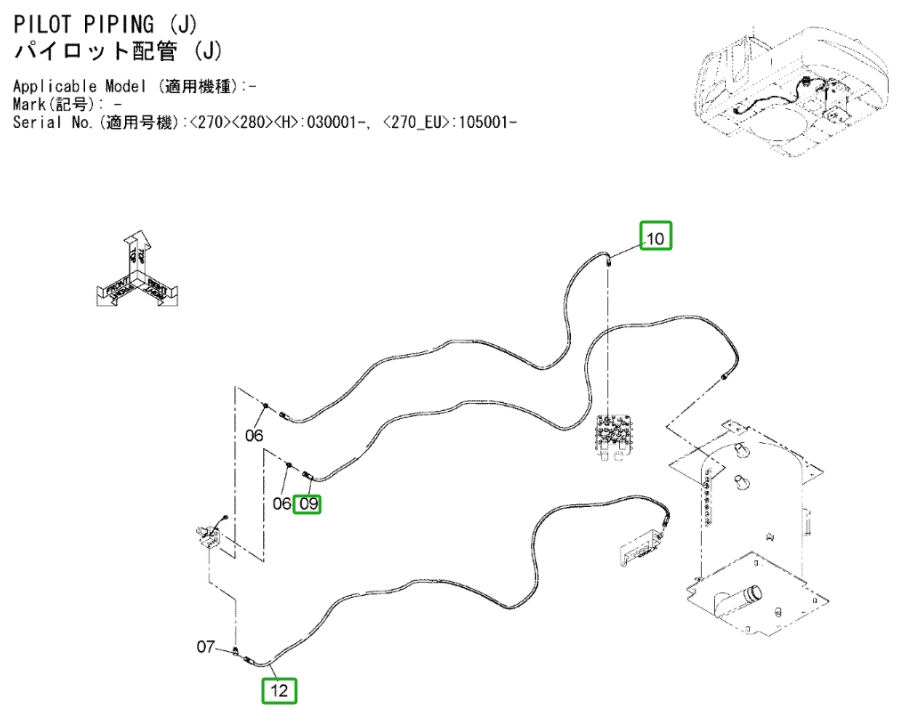

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 9265998 before removing the hose.

Hitachi ZX270LC-3 installation diagram showing hydraulic hose 9265998 at Pipe No. 12 — Hitachi ZX270LC-3Part 9265998 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 9265998
Diagram pipe number: 12
Installation route: 电磁阀~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,900 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 42

4653898

Installation route: 电磁阀~先导滤芯

Length: 1,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 46

4630949

Installation route: 电磁阀~中转接头

Length: 560 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 12A

4633933

Installation route: 电磁阀~进回油阀

Length: 3,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 12A

4609133

Installation route: 电磁阀~进回油阀

Length: 3,800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12

9295128

Installation route: 电磁阀~进回油阀

Length: 3,800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
