Individual hose record
4432696 Hose Repair Specifications
Excavator · Hitachi · EX27U · Control Lever
Finished length1,450 mm
Locate this hose

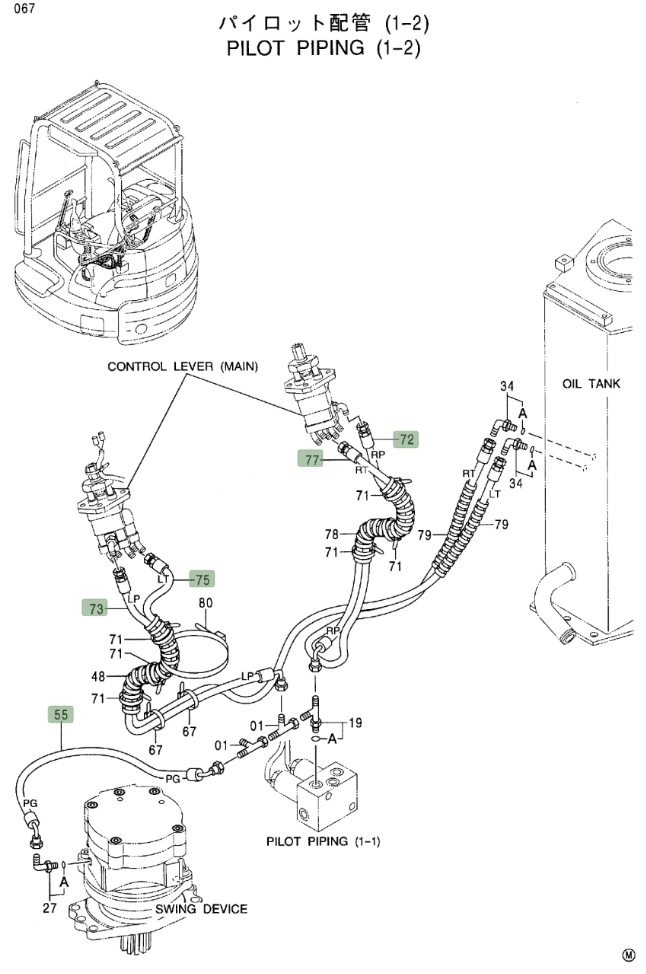

Installation diagram — Pipe No. 75
Locate Pipe No. 75 in the diagram, then confirm part number 4432696 before removing the hose.
Repair specifications
- Part number
- 4432696
- Diagram pipe number
- 75
- Installation route
- 左手柄~液压油箱
- Hose specification
- DN5;2层纤维-3;14MPa
- Finished length
- 1,450 mm
- Working pressure
- 14 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
