Individual hose record
KHJ2172 Hose Repair Specifications
Excavator · Case · CX380C-8 LC · Grease Lines
Finished length2,950 mm
Locate this hose

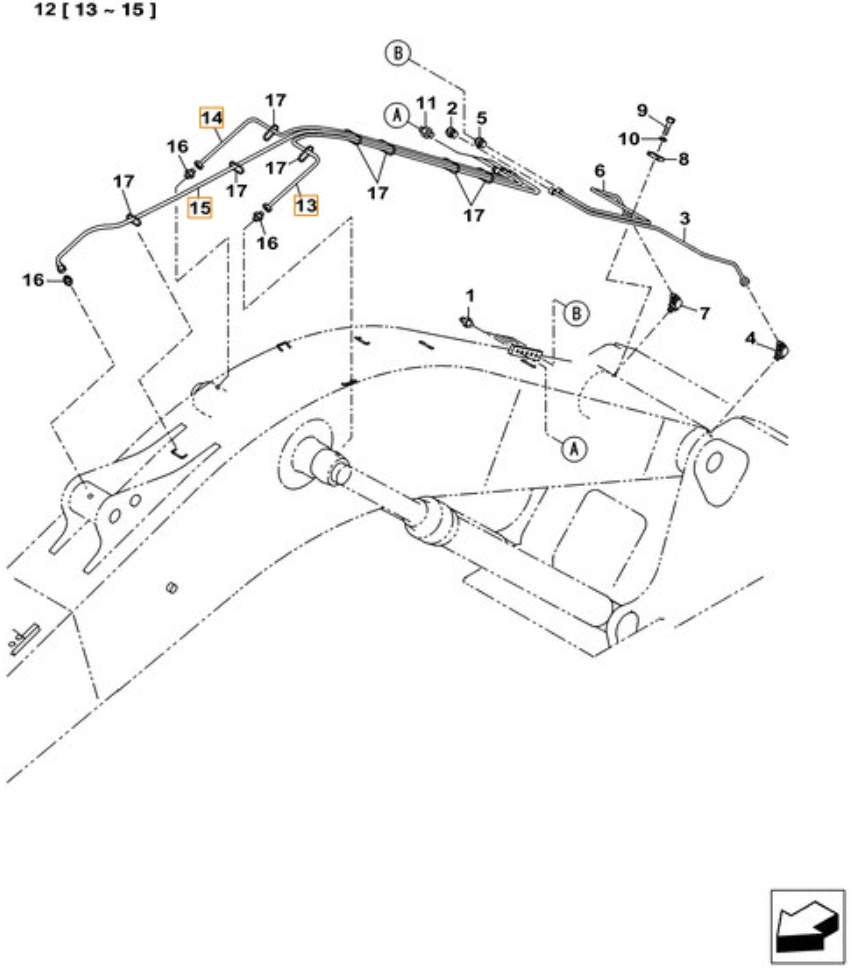

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number KHJ2172 before removing the hose.
Repair specifications
- Part number
- KHJ2172
- Diagram pipe number
- 13
- Installation route
- Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,950 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
