Individual hose record

KHJ14650 Hose Repair Specifications

Excavator · Case · CX500C · Attachments – Breaker

Finished length650 mm

Locate this hose

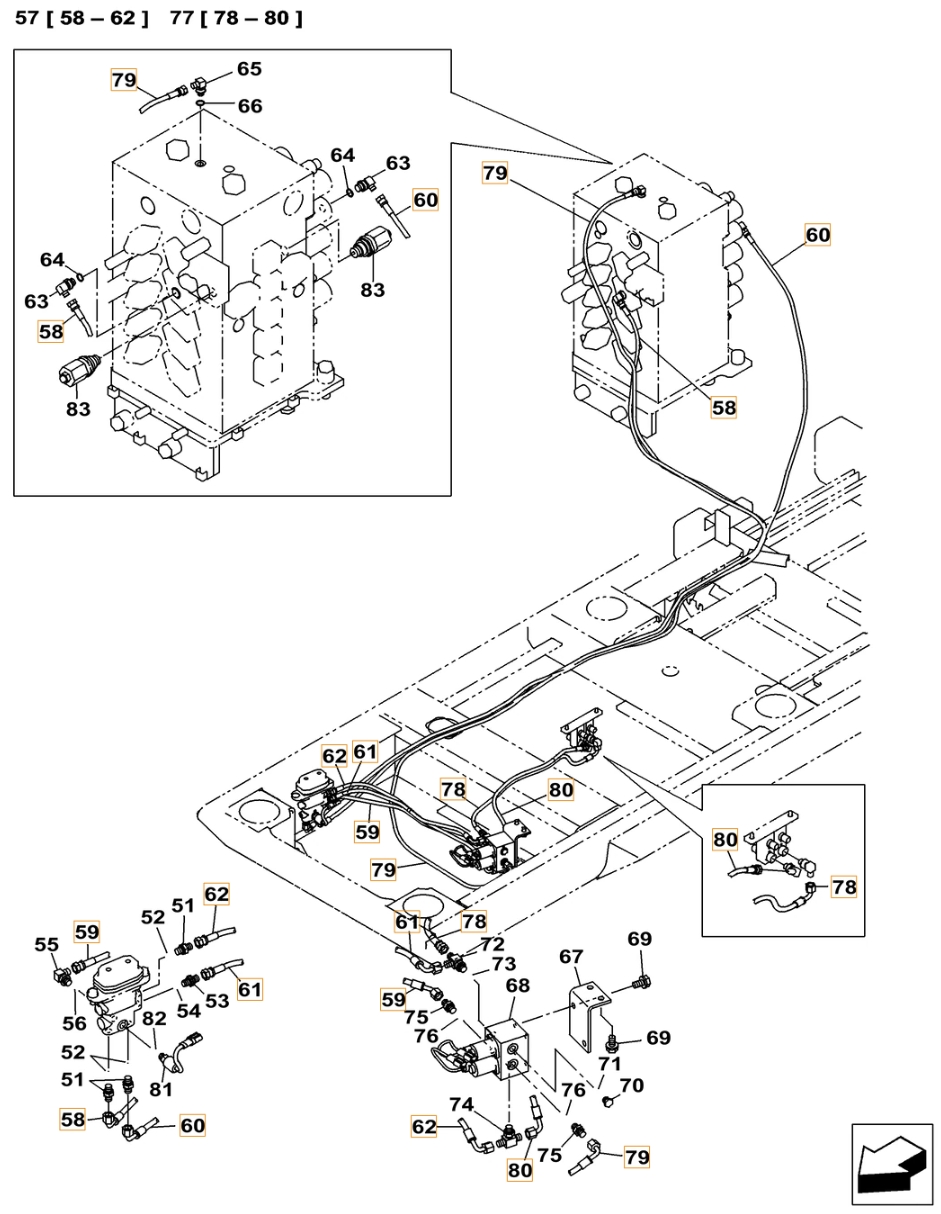

Installation diagram — Pipe No. 59

Locate Pipe No. 59 in the diagram, then confirm part number KHJ14650 before removing the hose.

Case CX500C installation diagram showing hydraulic hose KHJ14650 at Pipe No. 59 — **Case CX500C**Part KHJ14650 · Pipe No. 59Open full-size diagram

Repair specifications

Part number: KHJ14650
Diagram pipe number: 59
Installation route: 破碎器踏板~电磁阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1
