Diagram Pipe No. 1
4483563
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,900 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4257291 Hose Repair Specifications
Excavator · Hitachi · ZX300LC-6N · Grease Lines
Finished length3,600 mm
Locate this hose

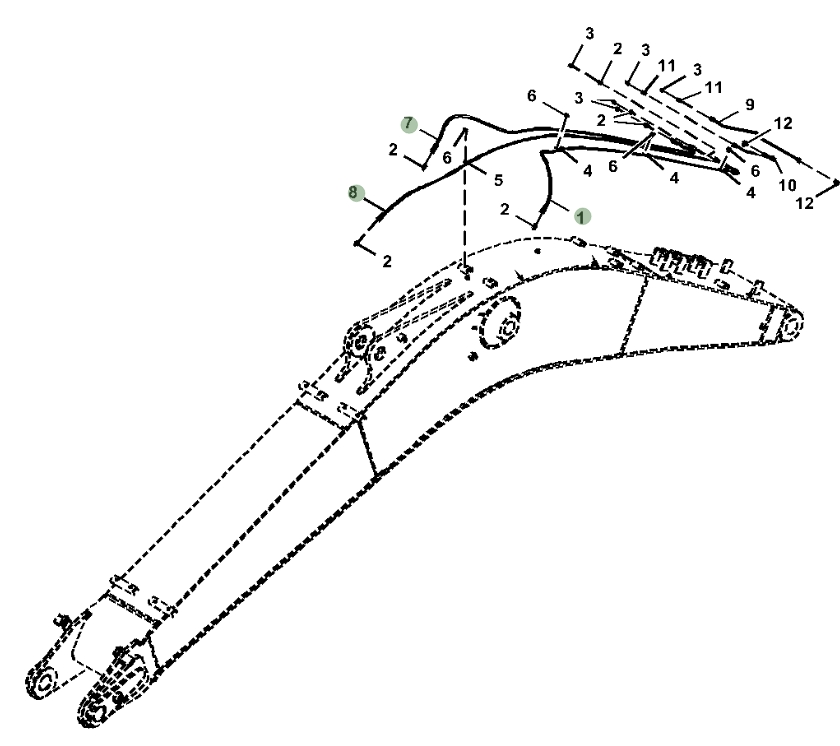

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4257291 before removing the hose.
Repair specifications
- Part number
- 4257291
- Diagram pipe number
- 8
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 3,600 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 7
4358894
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 670 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 1
4252853
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,960 mm
- Specification
- DN6;2层纤维-04;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 16
4358894
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 670 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
