Individual hose record

4640918 Hose Repair Specifications

Excavator · Hitachi · ZX210W-3 · Attachments – Breaker

Finished length1,300 mm

Locate this hose

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 4640918 before removing the hose.

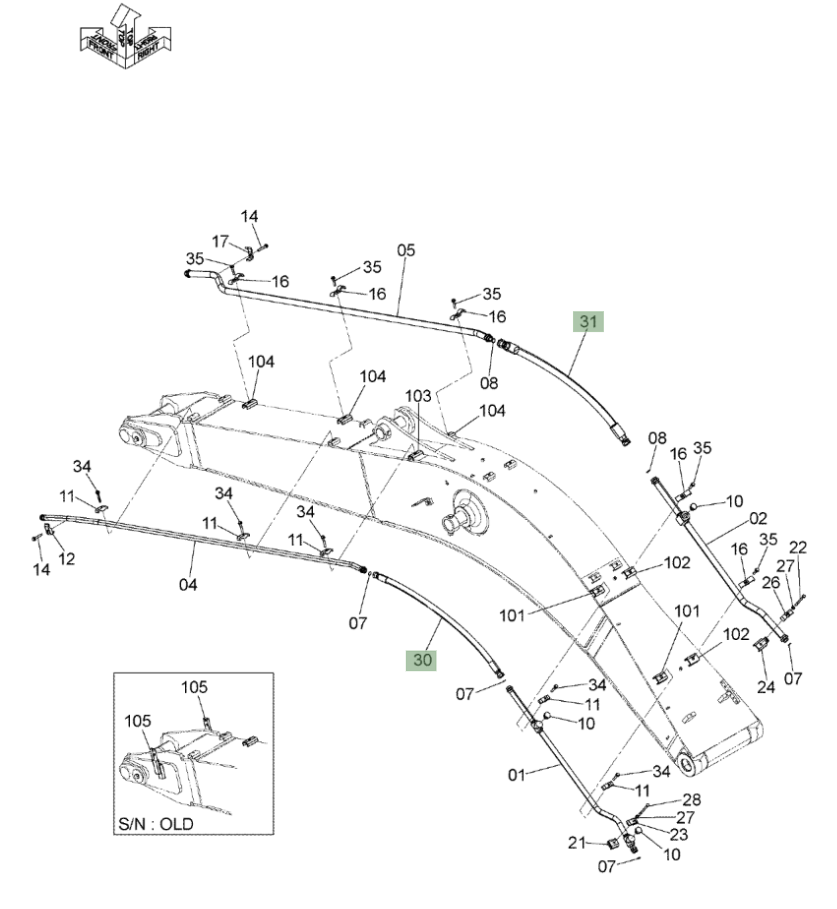

Hitachi ZX210W-3 installation diagram showing hydraulic hose 4640918 at Pipe No. 31 — **Hitachi ZX210W-3**Part 4640918 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 4640918
Diagram pipe number: 31
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN32;4SP-20;35Mpa
Finished length: 1,300 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 43

4652254

Installation route: 分配阀上~电磁阀(隔板)

Length: 3,650 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 30

4649213

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 32

4673668

Installation route: 电磁阀~止动阀(破碎器)

Length: 1,950 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 34

4274569

Installation route: 过渡阀块(破碎器)~回油铁管(液压油箱)

Length: 600 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 0

4649213

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 33

4437282

Installation route: 止动阀(破碎器)~电磁阀(破碎器)

Length: 550 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 27

4673271

Installation route: 液压油箱~电磁阀(踏板)

Length: 2,900 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 6A

4286816

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,450 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
