Individual hose record

KHJ2624 Hose Repair Specifications

Excavator · Case · CX225SR · Control Lever

Finished length1,200 mm

Locate this hose

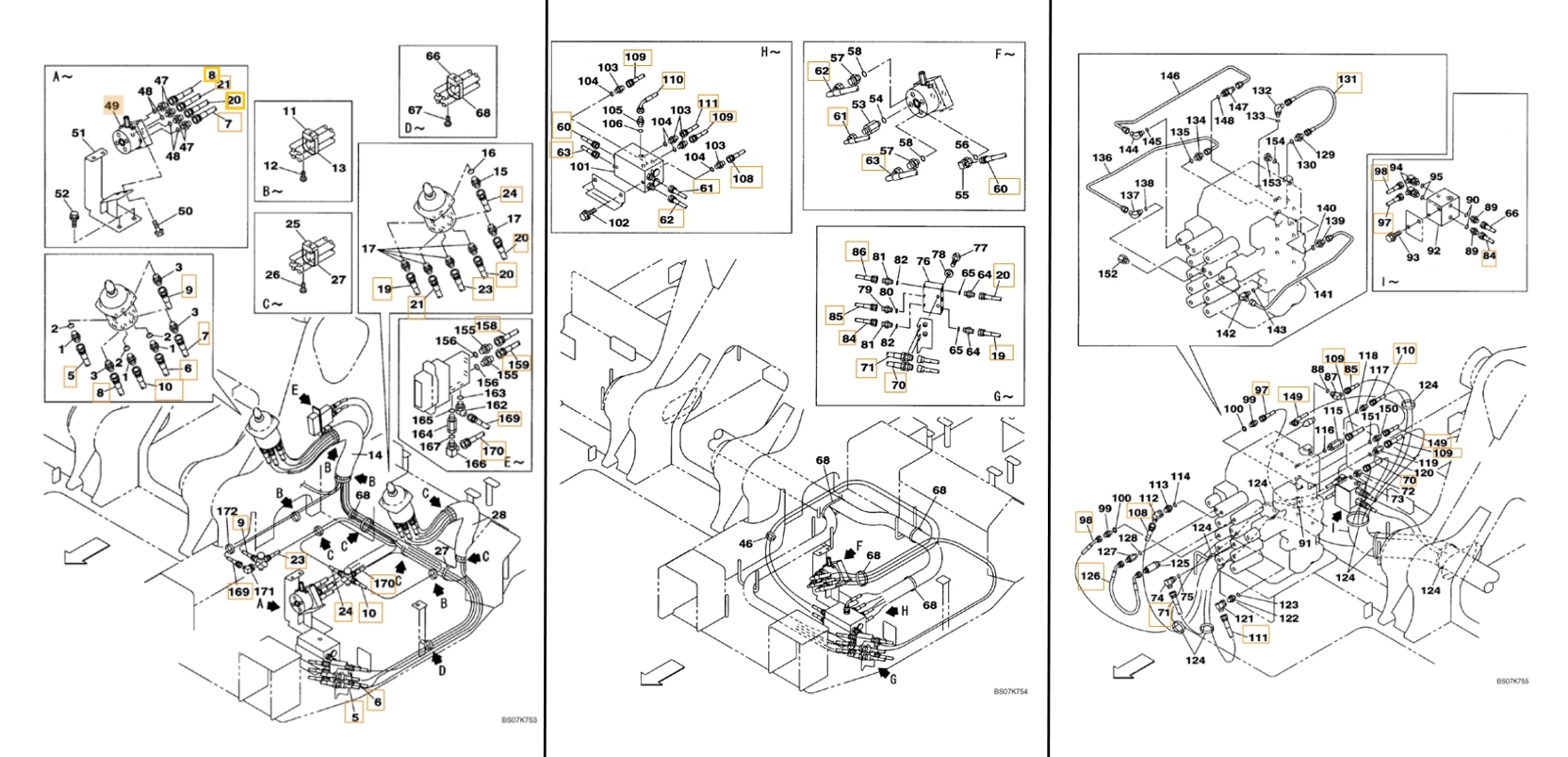

Installation diagram — Pipe No. 98

Locate Pipe No. 98 in the diagram, then confirm part number KHJ2624 before removing the hose.

Part number: KHJ2624
Diagram pipe number: 98
Installation route: 中转接头~分配阀前
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,200 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 63

Installation route: 中转接头~模式转换阀

Length: 2,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 110

Installation route: 中转接头~分配阀后

Length: 3,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 61

Installation route: 中转接头~模式转换阀

Length: 1,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
