Individual hose record

4445276 Hose Repair Specifications

Excavator · Hitachi · ZX220W-3 · Hydraulic Tank

Finished length400 mm

Locate this hose

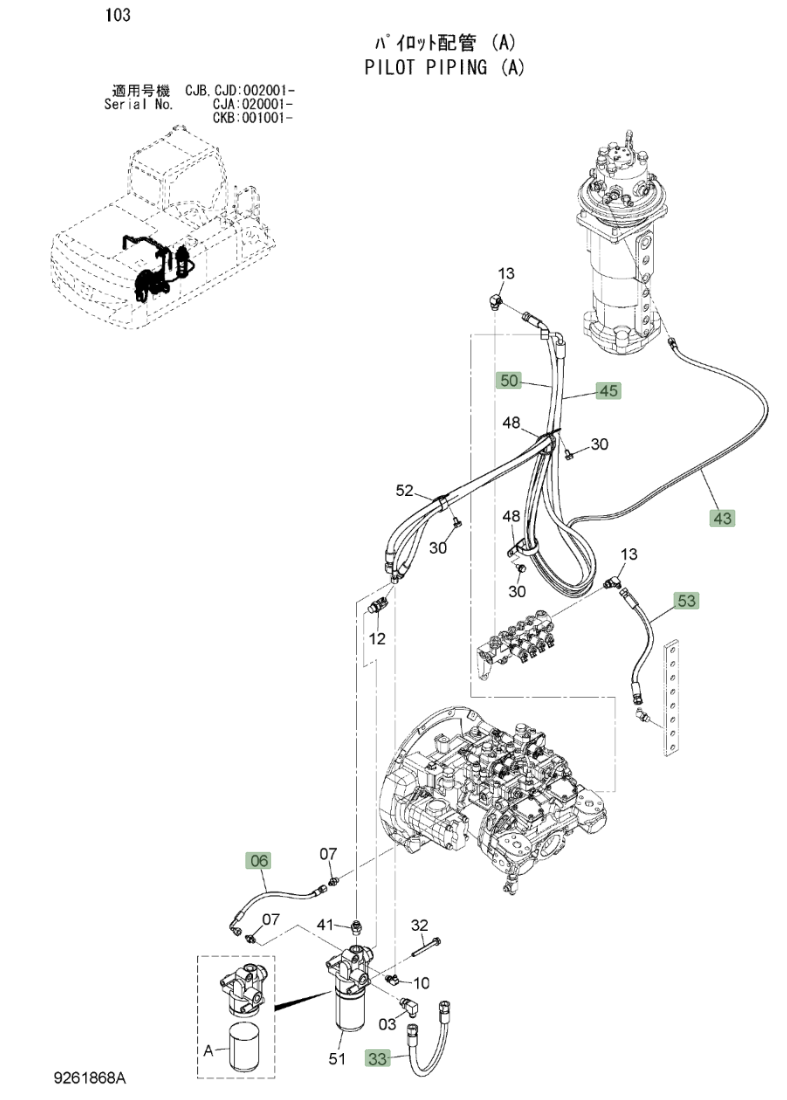

Installation diagram — Pipe No. 53

Locate Pipe No. 53 in the diagram, then confirm part number 4445276 before removing the hose.

Hitachi ZX220W-3 installation diagram showing hydraulic hose 4445276 at Pipe No. 53 — Hitachi ZX220W-3Part 4445276 · Pipe No. 53Open full-size diagram

Repair specifications

Part number: 4445276
Diagram pipe number: 53
Installation route: 液压油箱~电磁阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 400 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 42

4474667

Installation route: 液压油箱~中转接头

Length: 900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 17

4656032

Installation route: 液压油箱~进回油阀

Length: 3,300 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 51

4437292

Installation route: 液压油箱~过渡阀块(分配阀)

Length: 730 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 39

4656048

Installation route: 液压油箱~中转接头

Length: 1,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
