Individual hose record

4286505 Hose Repair Specifications

Excavator · Hitachi · ZX650LC-3 · Hydraulic Tank

Finished length800 mm

Locate this hose

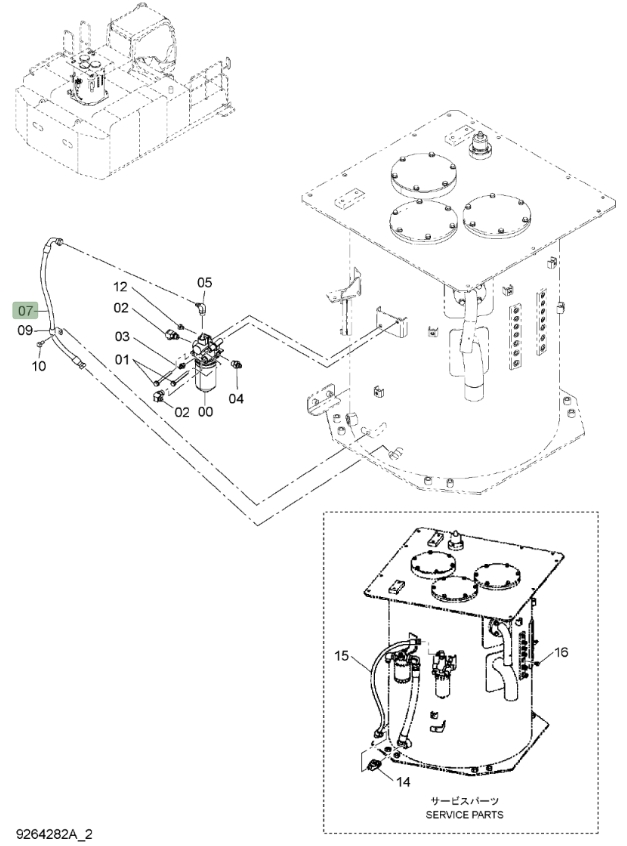

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4286505 before removing the hose.

Hitachi ZX650LC-3 installation diagram showing hydraulic hose 4286505 at Pipe No. 7 — Hitachi ZX650LC-3Part 4286505 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4286505
Diagram pipe number: 7
Installation route: 液压油箱~先导滤芯
Hose specification: DN13;1SN-08;16MPa
Finished length: 800 mm
Working pressure: 16 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
