Individual hose record
4216453 Hose Repair Specifications
Excavator · Hitachi · EX150 · Hydraulic Pump
Finished length300 mm
Locate this hose

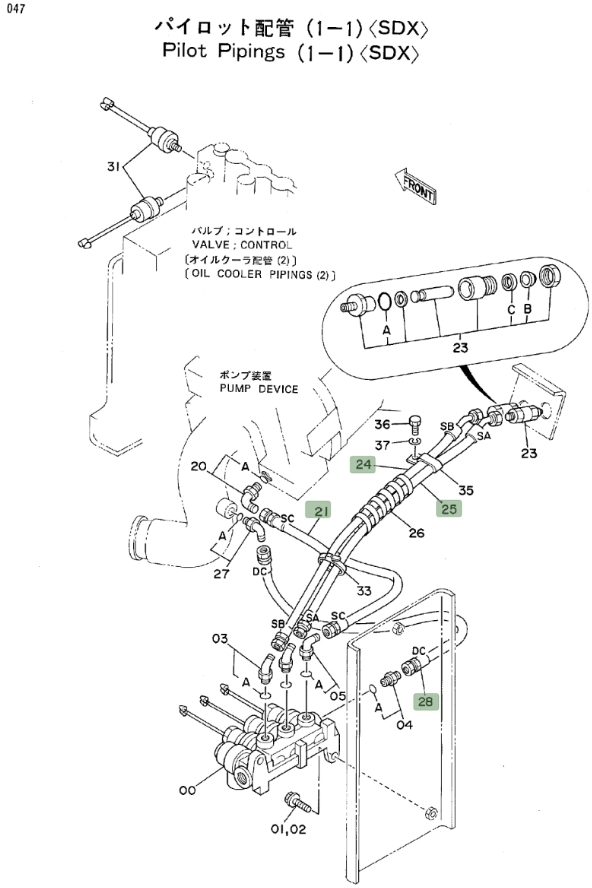

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4216453 before removing the hose.
Repair specifications
- Part number
- 4216453
- Diagram pipe number
- 21
- Installation route
- 液压泵~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
