Individual hose record
4696770 Hose Repair Specifications
Excavator · Hitachi · ZX470-5A · Attachments – Breaker
Finished length4,200 mm
Locate this hose

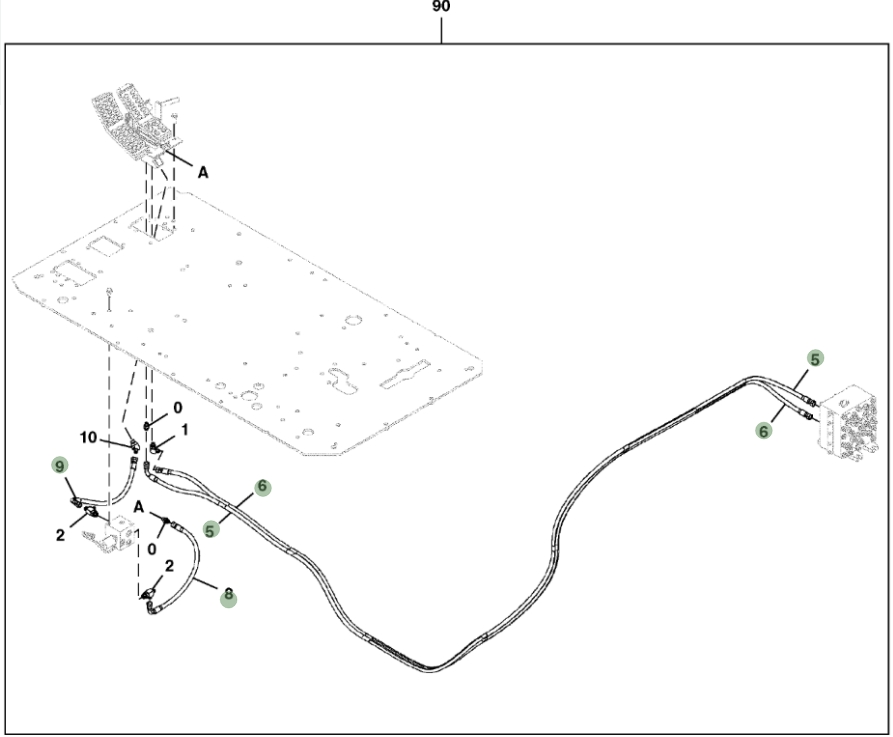

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4696770 before removing the hose.
Repair specifications
- Part number
- 4696770
- Diagram pipe number
- 6
- Installation route
- 破碎器踏板~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 4,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
