Individual hose record
9203441 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC · Solenoid Valve
Finished length2,600 mm
Locate this hose

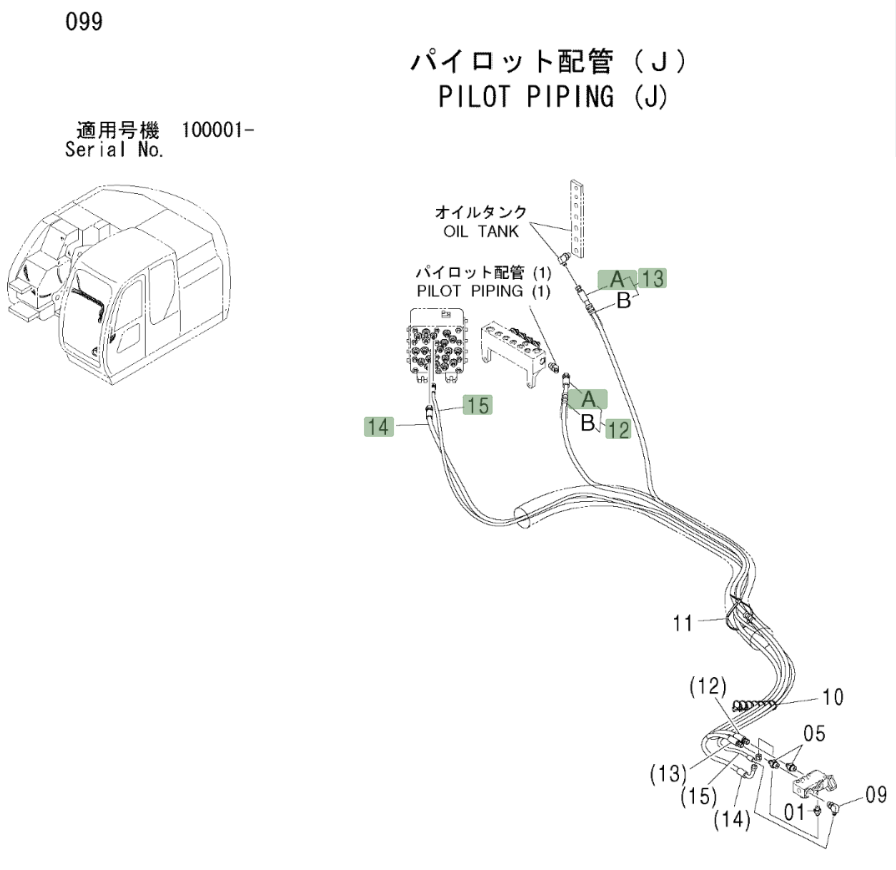

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 9203441 before removing the hose.
Repair specifications
- Part number
- 9203441
- Diagram pipe number
- 12
- Installation route
- 电磁阀~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
