730503001918 Hose Repair Specifications

Excavator · Sunward · SWE135E-3H · Swing Motor

Finished length580 mm

Locate this hose

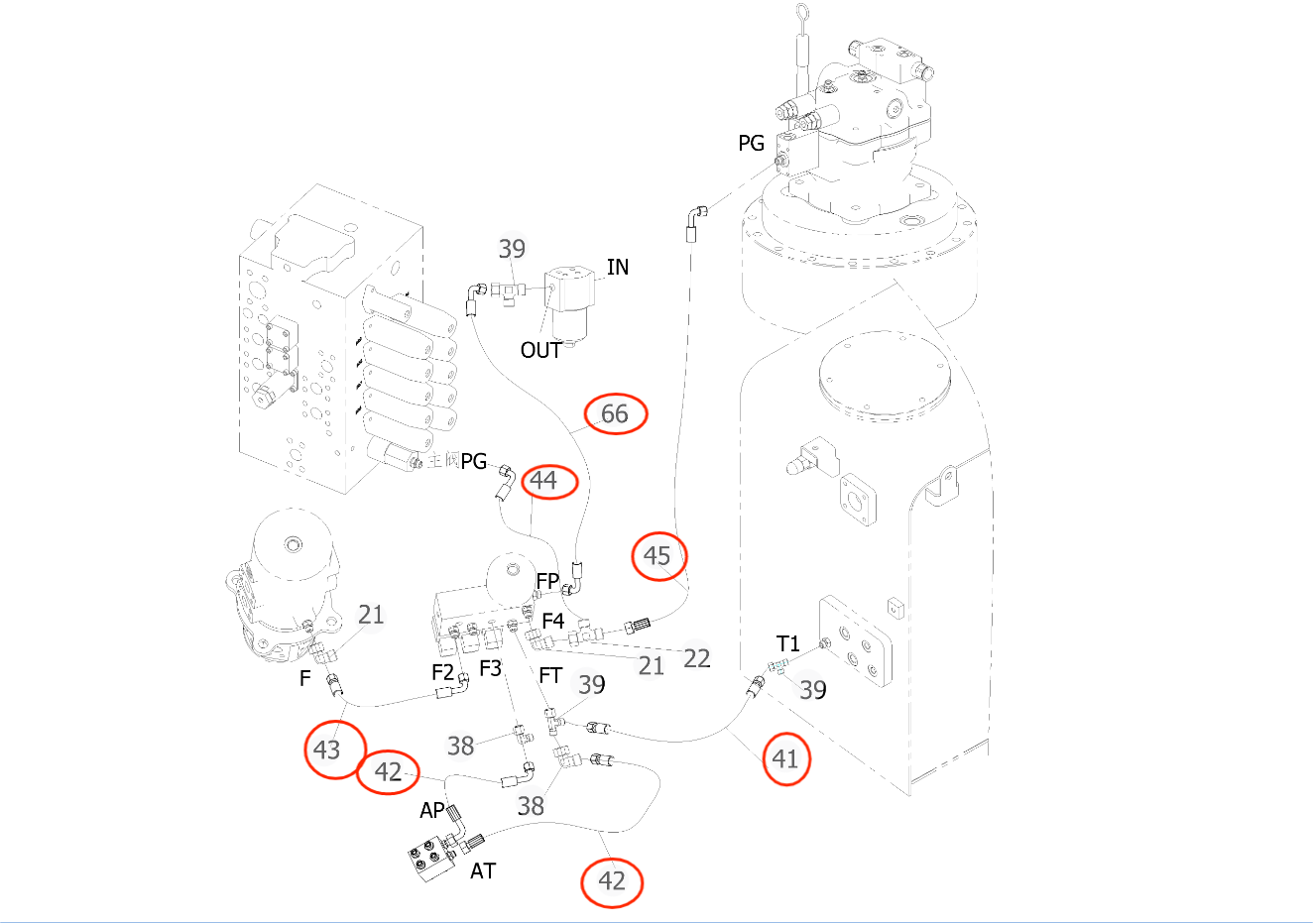

Installation diagram — Pipe No. 45

Locate Pipe No. 45 in the diagram, then confirm part number 730503001918 before removing the hose.

Sunward SWE135E-3H installation diagram showing hydraulic hose 730503001918 at Pipe No. 45 — Sunward SWE135E-3HPart 730503001918 · Pipe No. 45Open full-size diagram

Repair specifications

Part number: 730503001918
Diagram pipe number: 45
Installation route: 回转马达PG~电磁阀(蓄能器)F4
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 580 mm
Working pressure: 22.5 MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
