Individual hose record

KHJ2746 Hose Repair Specifications

Excavator · Case · CX300C-8 · Solenoid Valve

Finished length3,300 mm

Locate this hose

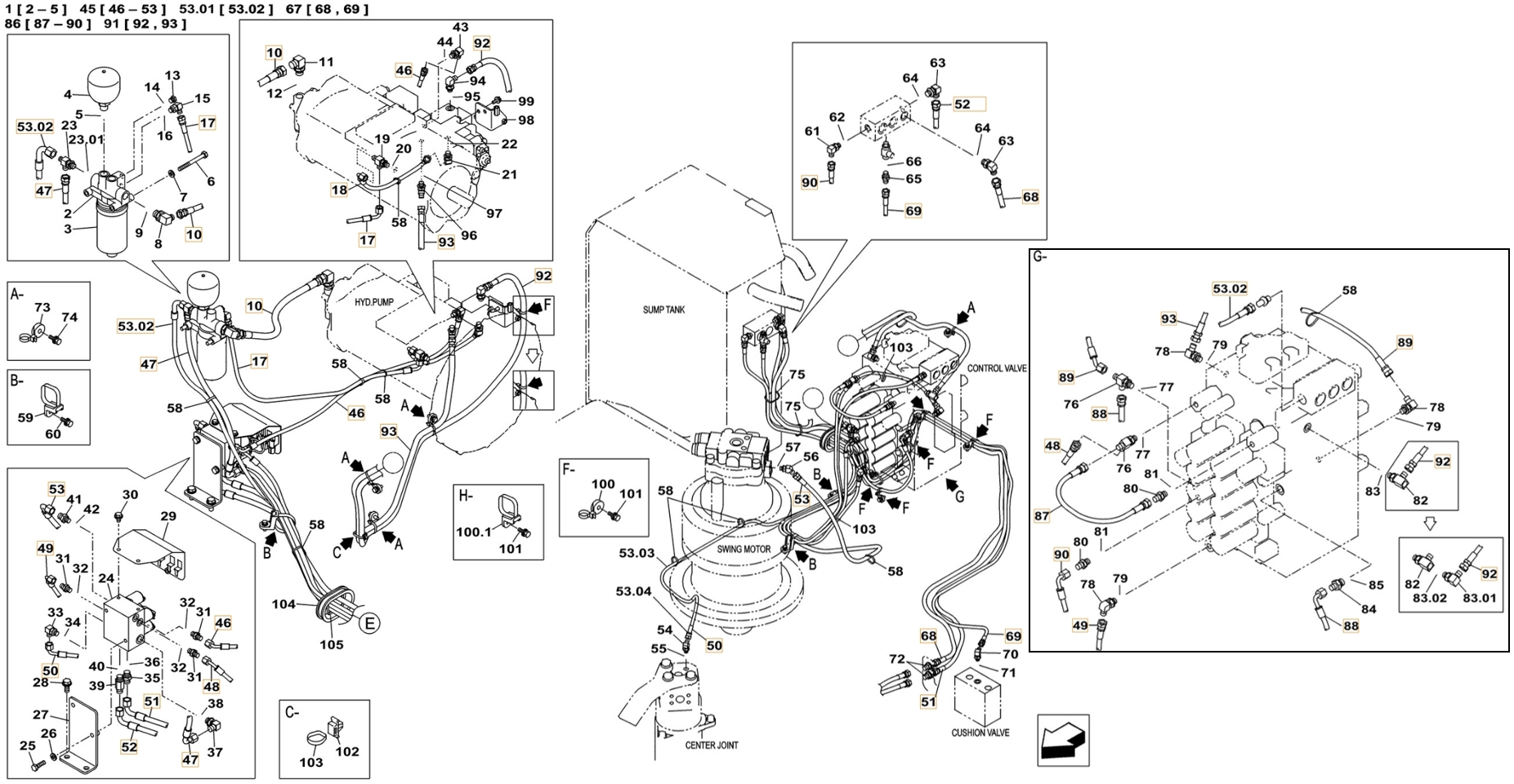

Installation diagram — Pipe No. 51

Locate Pipe No. 51 in the diagram, then confirm part number KHJ2746 before removing the hose.

Part number: KHJ2746
Diagram pipe number: 51
Installation route: 电磁阀~接头(进回油阀)
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,300 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 47

Installation route: 电磁阀~先导滤芯

Length: 550 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 52

Installation route: 电磁阀~液压油箱过渡阀块

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
