- Length
- 1,650 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
DS2054341 Hose Repair Specifications
Excavator · Doosan · E57W · Hydraulic Tank
Finished length500 mm
Locate this hose

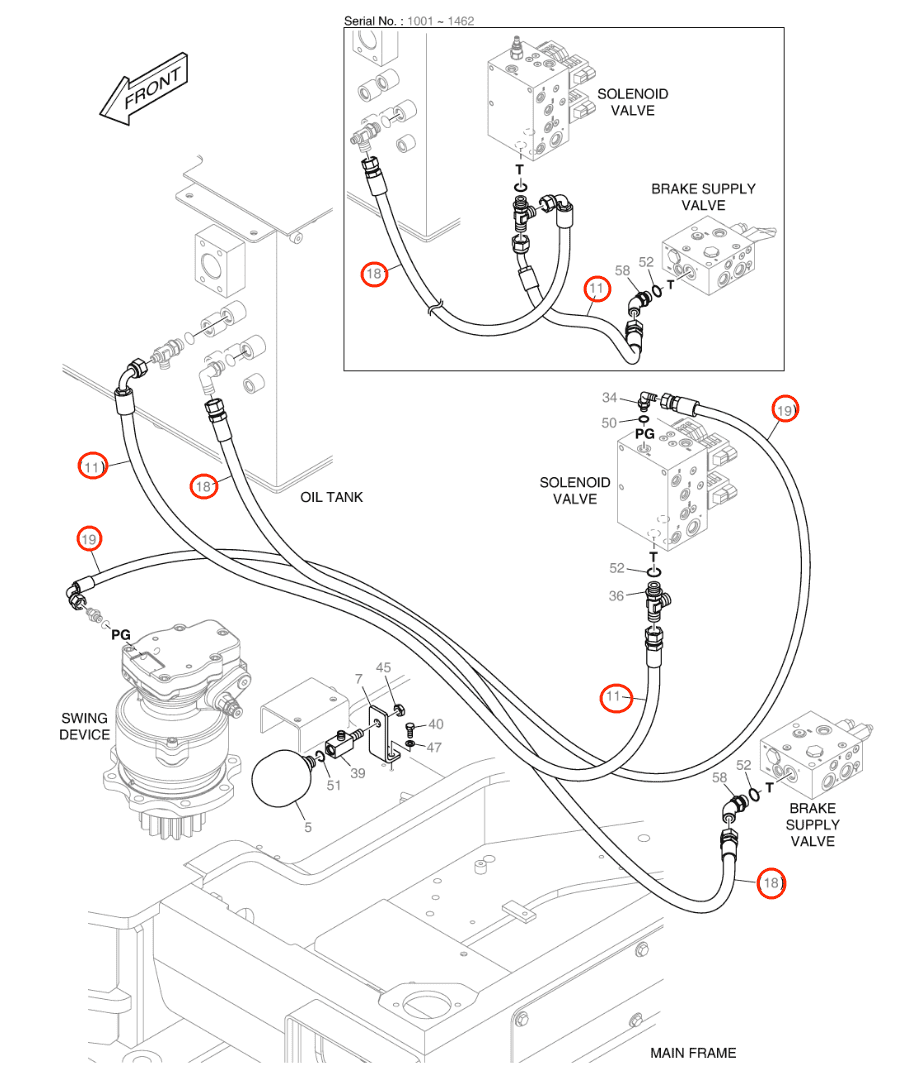

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number DS2054341 before removing the hose.
Repair specifications
- Part number
- DS2054341
- Diagram pipe number
- 11
- Installation route
- 液压油箱~电磁阀T口
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 500 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
