Individual hose record
73050200C823 Hose Repair Specifications
Excavator · Sunward · SWE150W · Boom Assembly
Finished length655 mm
Locate this hose

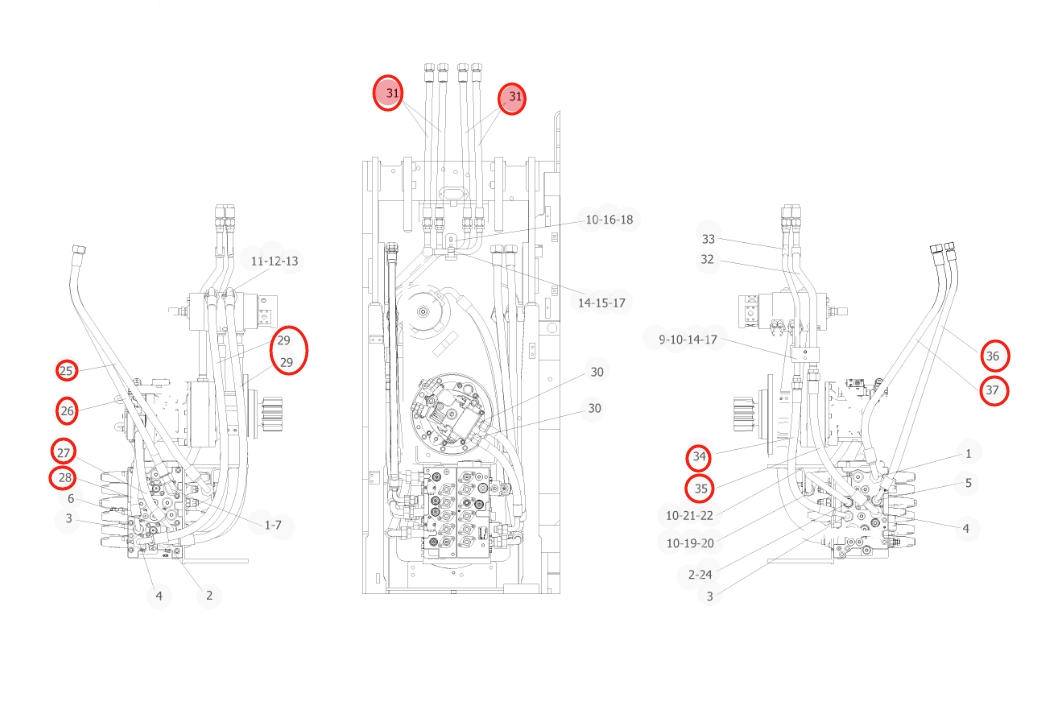

Installation diagram — Pipe No. 35
Locate Pipe No. 35 in the diagram, then confirm part number 73050200C823 before removing the hose.
Repair specifications
- Part number
- 73050200C823
- Diagram pipe number
- 35
- Installation route
- 大臂油缸~分配阀左
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 655 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
