Individual hose record
730502001094 Hose Repair Specifications
Excavator · Sunward · SWE400E-3H · Control Valve
Finished length750 mm
Locate this hose

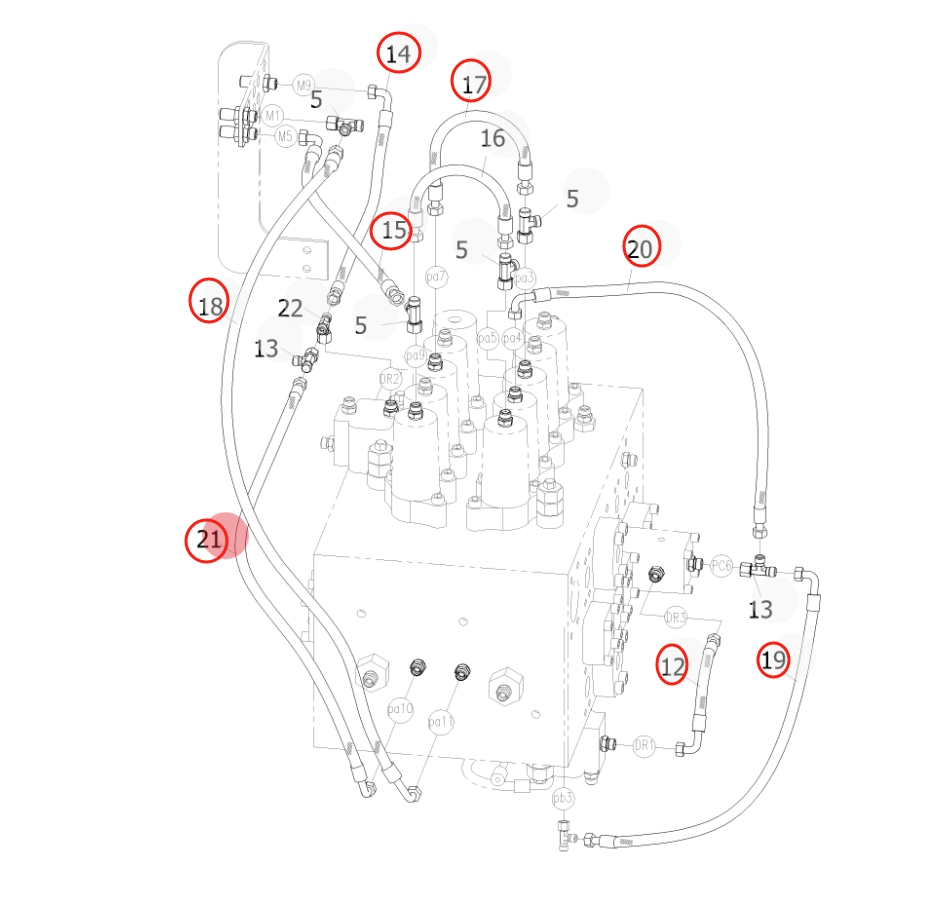

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 730502001094 before removing the hose.
Repair specifications
- Part number
- 730502001094
- Diagram pipe number
- 18
- Installation route
- 分配阀左PA11~接线板M1(分配阀前)
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
