Individual hose record

4314983 Hose Repair Specifications

Excavator · Hitachi · ZXS370F-3 · Grease Lines

Finished length3,700 mm

Locate this hose

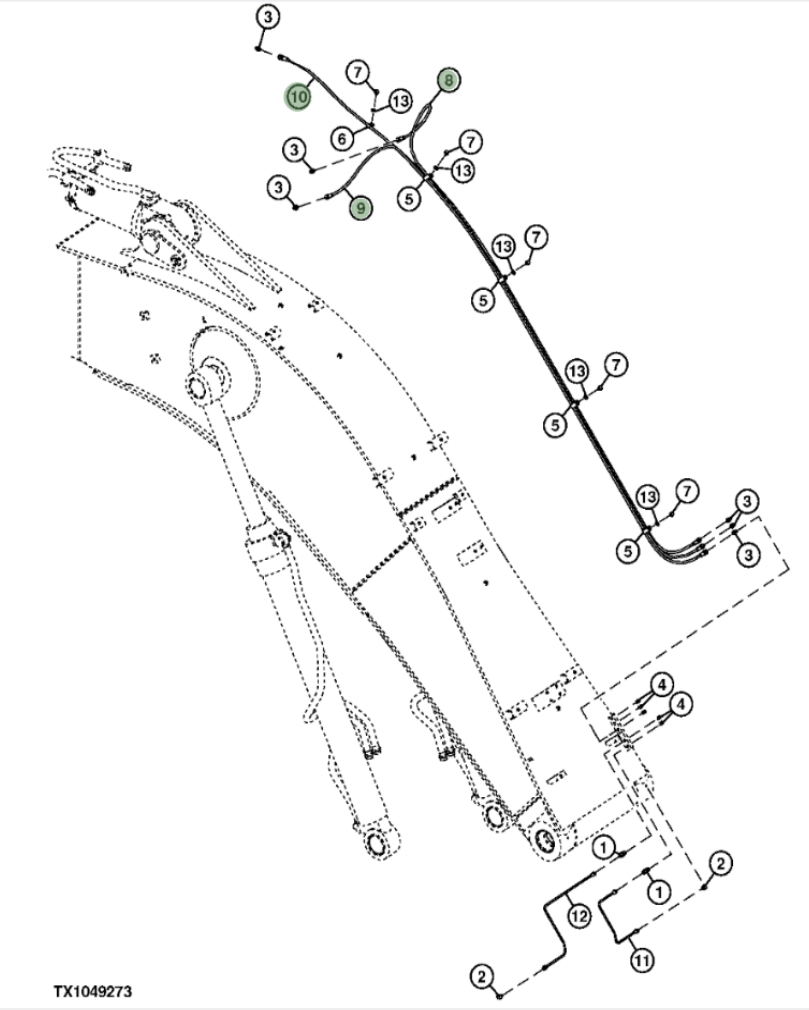

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4314983 before removing the hose.

Hitachi ZXS370F-3 installation diagram showing hydraulic hose 4314983 at Pipe No. 10 — Hitachi ZXS370F-3Part 4314983 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4314983
Diagram pipe number: 10
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,700 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
