Individual hose record
9191786 Hose Repair Specifications
Excavator · Hitachi · ZX270LC · Hydraulic Tank
Finished length1,700 mm
Locate this hose

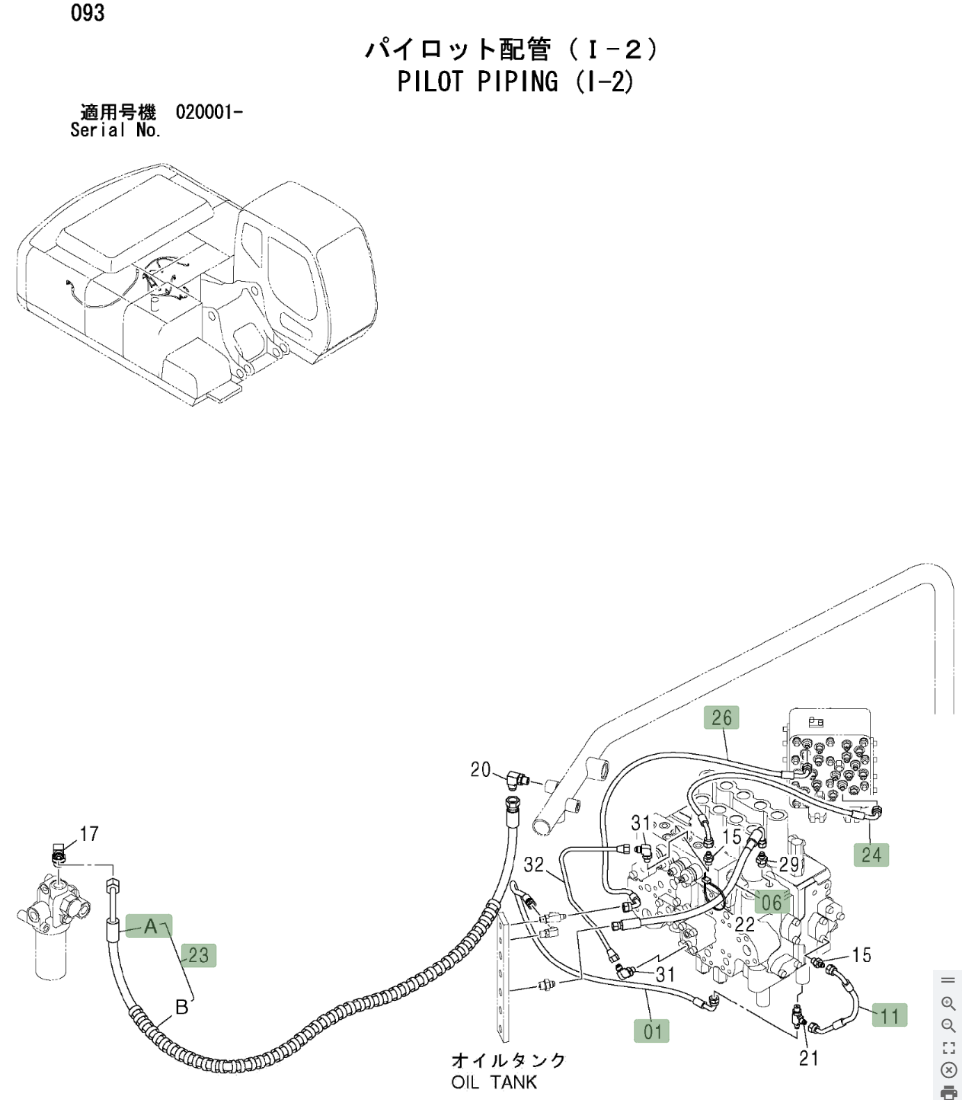

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 9191786 before removing the hose.
Repair specifications
- Part number
- 9191786
- Diagram pipe number
- 23
- Installation route
- 回油铁管(液压油箱)~先导滤芯
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 1,700 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
