Individual hose record
152299A1 Hose Repair Specifications
Excavator · Case · CX700B · Attachments
Finished length2,950 mm
Locate this hose

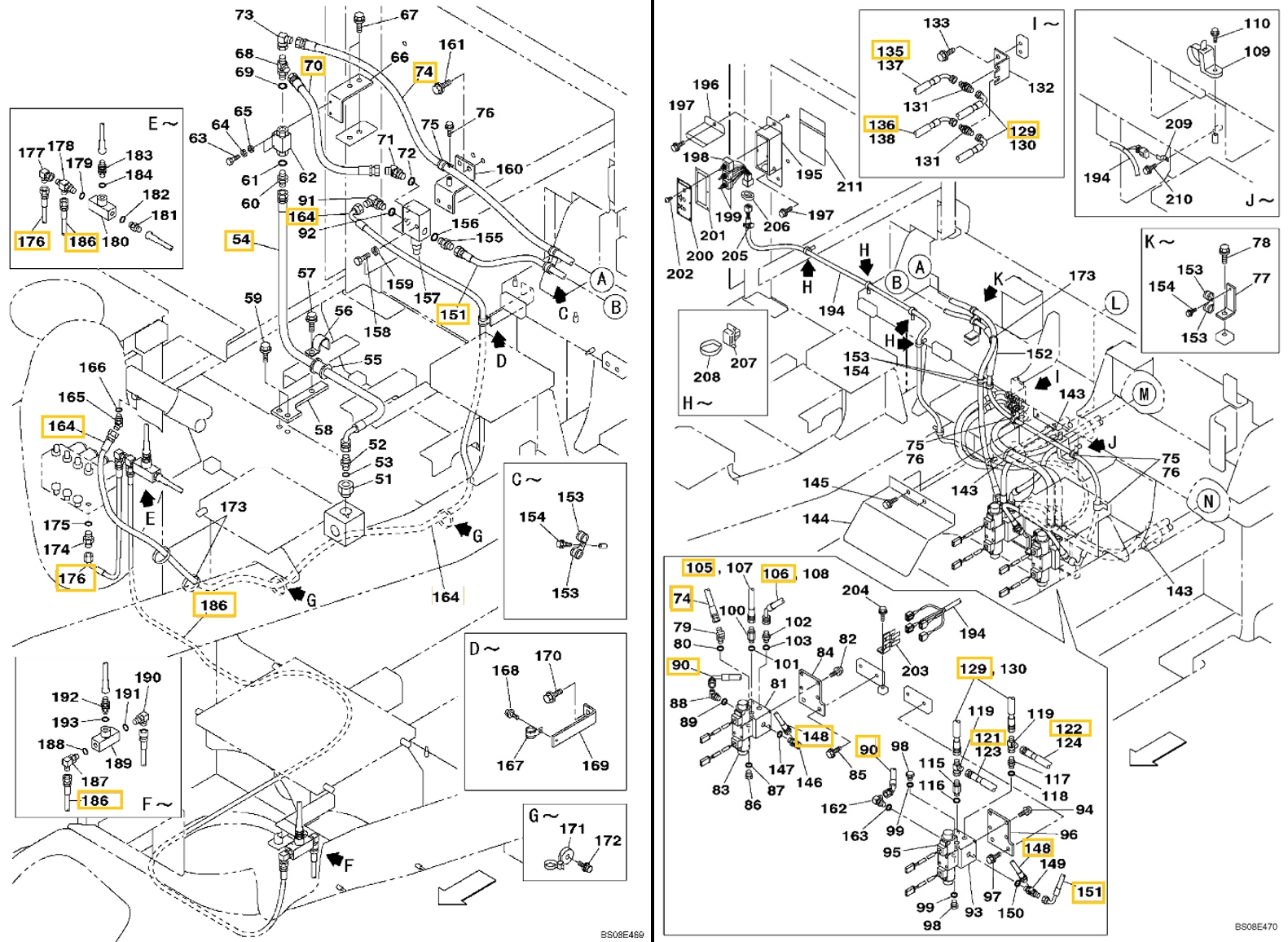

Installation diagram — Pipe No. 186
Locate Pipe No. 186 in the diagram, then confirm part number 152299A1 before removing the hose.
Repair specifications
- Part number
- 152299A1
- Diagram pipe number
- 186
- Installation route
- 接头(分配阀)~接头(配重自卸)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,950 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
